Release 7.0

Recently Viewed Products

scRecentlyViewedProducts sc-recently-viewed-items
Recently viewed products are those products a particular customer/consumer most frequents.  This is a handy way for users (and sales person) to find products they view with regularity without searching through the catalog. This control is used to render recently viewed products. It can be configured to display the products in a thumbnail or a full list.


Sample Views

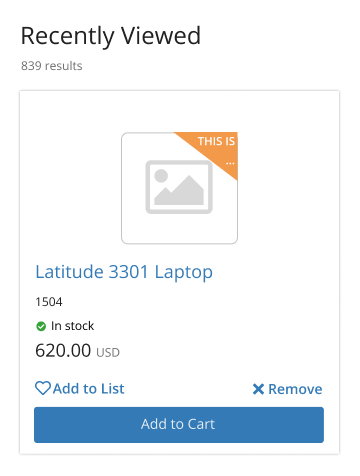

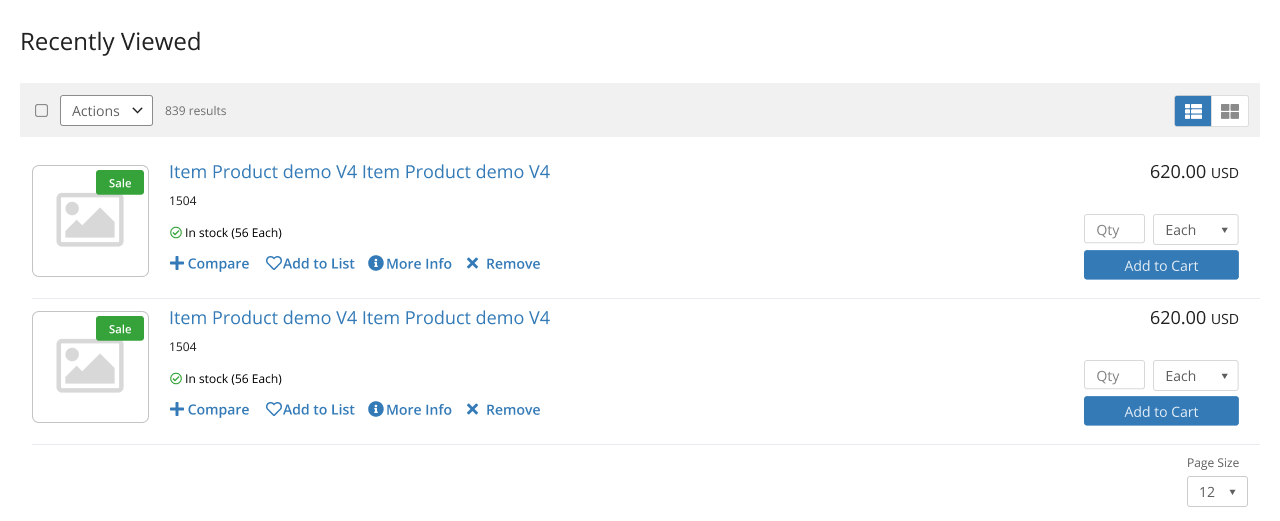

1- Recently Viewed - List Display
Recently viewed products can be displayed in either a grid or a list. The image below is an example of list mode.

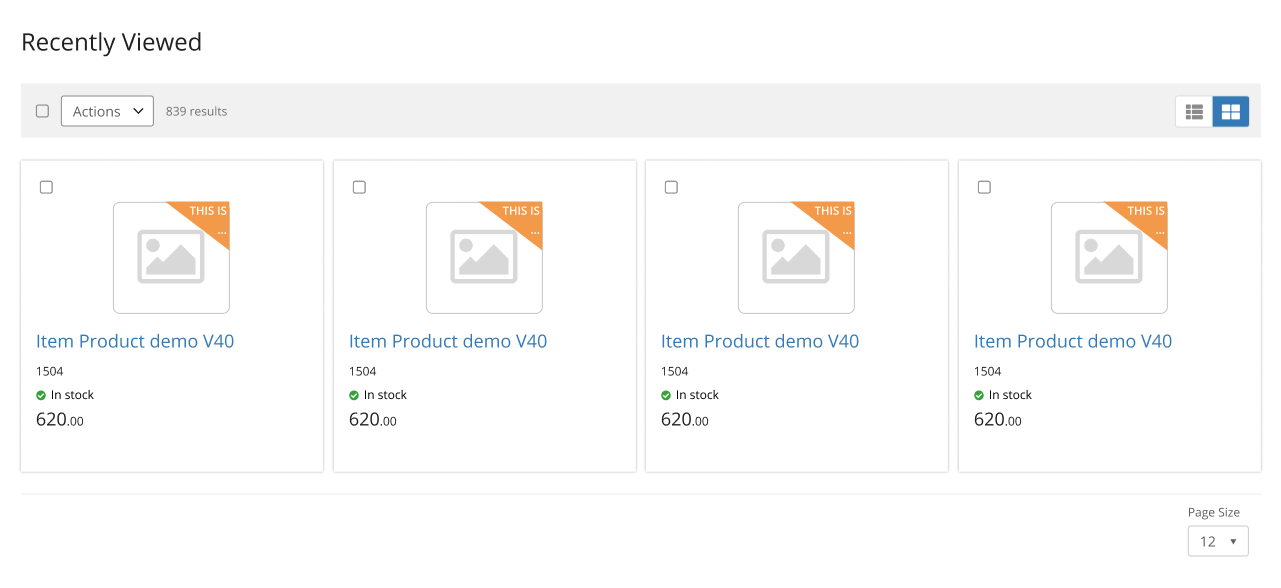

2- Recently Viewed - Grid Display
Recently viewed products can be displayed in either a grid or a list. The image below is an example of grid mode.

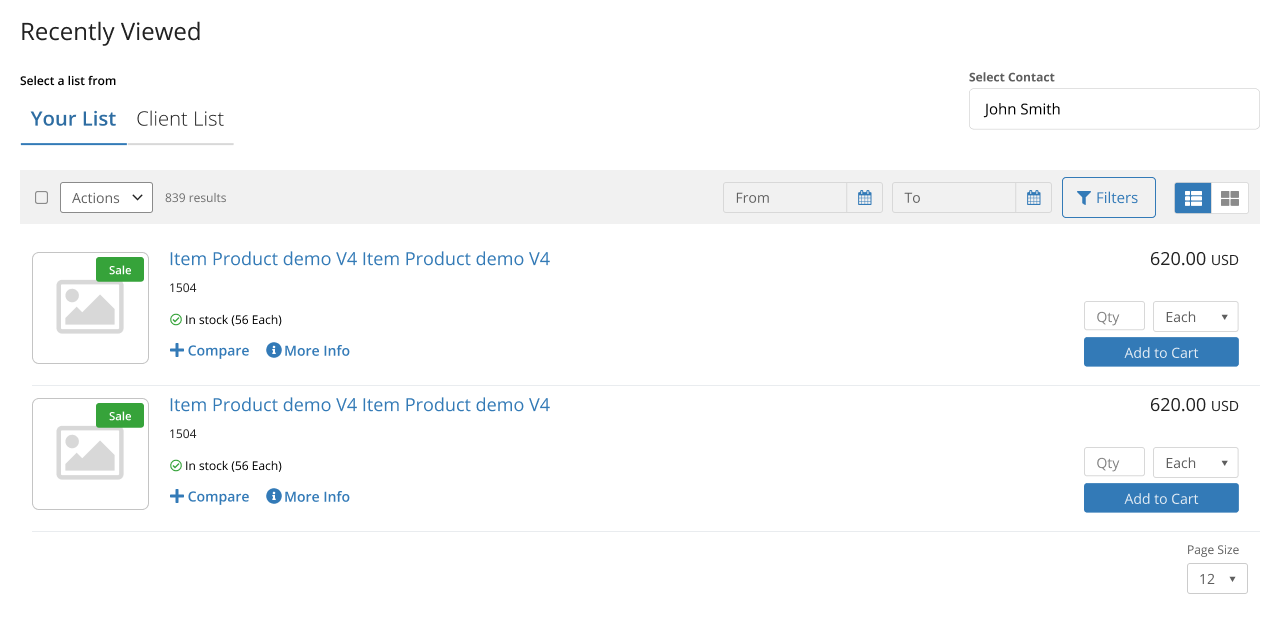

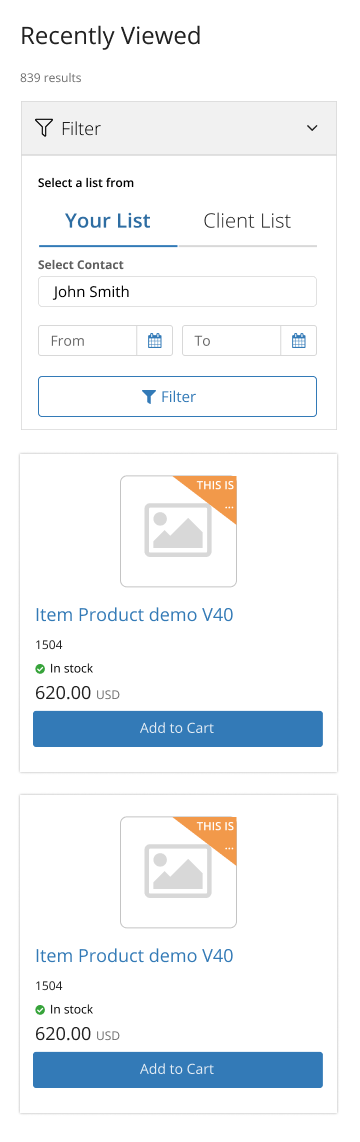

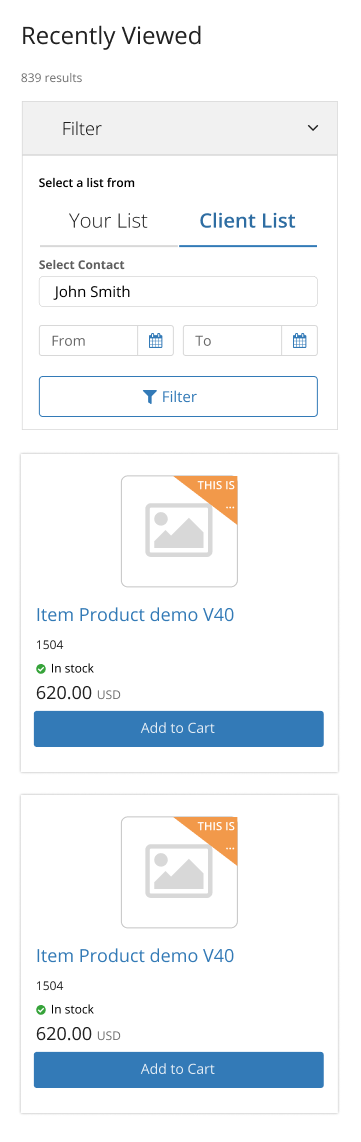

3- Sales Person - List Display
Recently viewed products can be displayed by a sales person in either a grid or a list. The image below is an example of list mode.

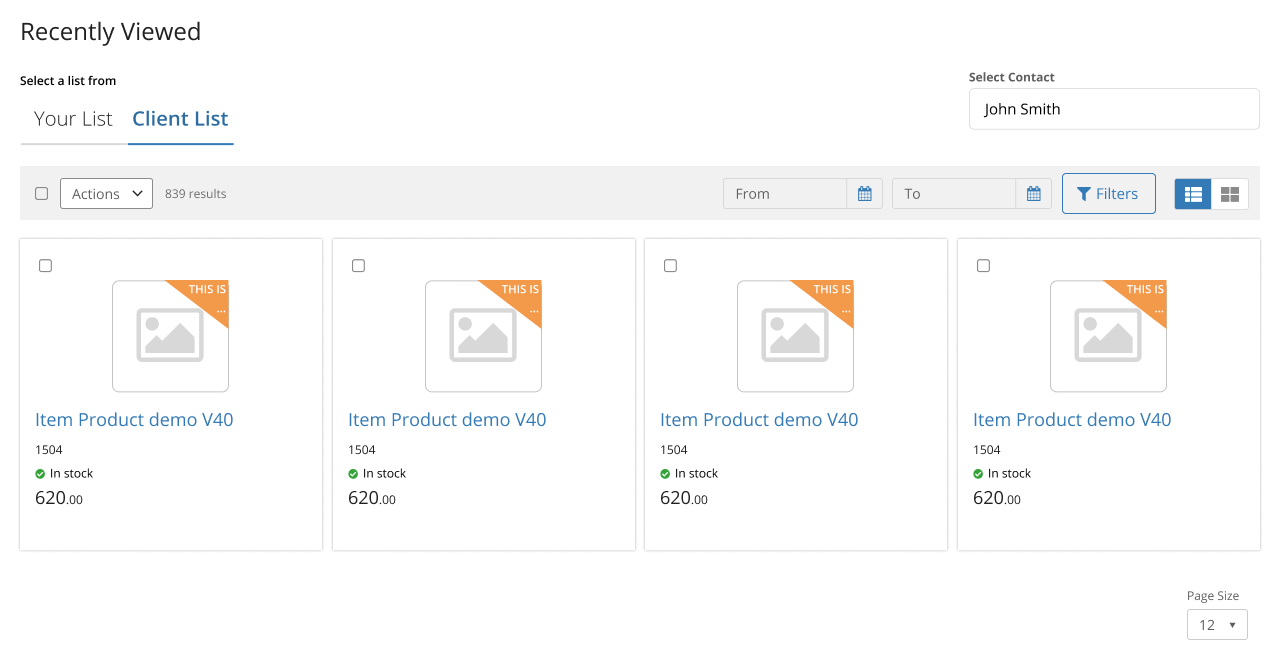

4- Sales Person - Grid List
Recently viewed products can be displayed by a sales person in either a grid or a list. The image below is an example of grid mode.
Product Listing Layout Mode
Defines the startup mode for the Catalog product listing: List or Grid. Default value is Listing.


Sample Views

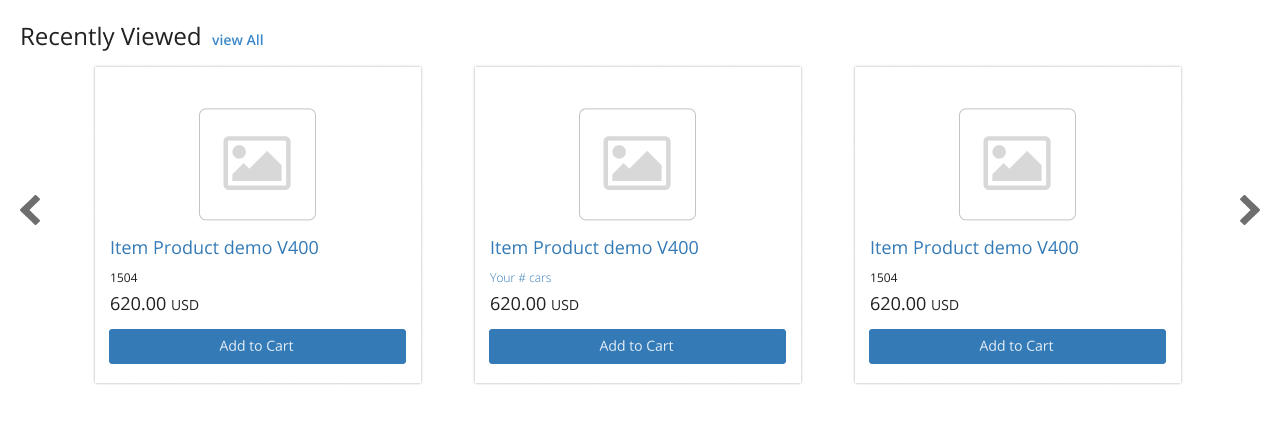

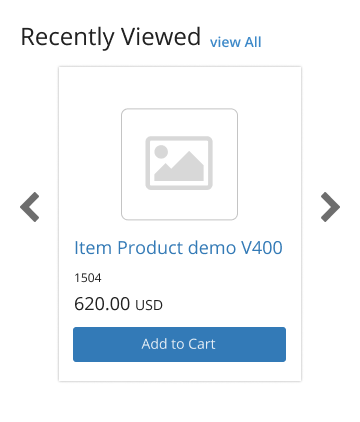

1- Thumbnail
Display Mode
Defines if nodes are displayed in Carousel or List.
Max Number of Products to Display Page Size
Defines number of products to display. The page size for the Carousel view mode. Default value is 3. If the value is 0 or empty the process uses 3.
Number of Products to Display
Defines number of products to display in list Mode. Default value is 3. If the value is 0 or empty the process uses 3.
Link to Product Content
Defines the URL for Product Content page. The Product Content widget contains Product Detailed availability/Product Replacements/Product Configurator views. (URL is required)
Recently Viewed Full View URL
Defines the URL for Recently viewed products page.
Link to Shopping Cart

Required when the website is configured to Redirect to shopping cart after adding products to cart. (Settings Module -> Web Site -> General Behavior) Defines the URL for Shopping Cart page.

Link to Customer Service
Defines the URL for Customer Service contact information page.
Cross Reference Type for Customer Product Number
Ecommerce > Settings
JD Edwards item cross reference type code representing customer item number.
Sales Restriction - by Cat Code
Inventory > Settings

Determines the inventory category code values which can be purchased via the web site.

Maximum recently viewed products per web user
Catalog
Defines the number of recently viewed products saved per web user.  When this setting is 0 no visited products will be saved.
Show product number
Catalog > Product Listings

This setting hides/shows the product number and the customer cross-reference number. This setting is used in the product search visual assistant and the following widgets:

  • Catalog
  • Compare (widget and bar)
  • Cross reference products in Product Content and Shopping Cart
  • Most Viewed Products
  • Product Content Replacements View
  • Product Search Box (suggestions)
  • Product Search Results
  • Recently Viewed Products
  • Wish List
  • Add to Cart Modal Confirmation

    The historical widgets, for example Order History, Invoice History, and Product Content and the “More Info” modal do not use this setting.


Display price mode
Catalog > Product Listings
Defines if the product price is displayed or not. Options are:
  • Price calculated from ERP
  • Do not display price in listings
  • Price is displayed from the Products module

This setting affects the following widgets:

  • Compare
  • Most Viewed Products Full List View and Thumbnail View
  • Product Content Replacements View
  • Quick Order
  • Recently Viewed Products Full List View and Thumbnail View
  • Wish List
Display add to cart
Catalog > Product Listings

Determines if the add to cart option is displayed or not.  This setting affects the following widgets:

  • Most Viewed Products Full List View
  • Product Content Replacements View
  • Wish List
  • Recently Viewed Products Full List View
  • Compare
Display add to list
Catalog > Product Listings

Determines if the option to add products to wish-list is displayed or not. This setting impacts the following widgets:

  • Compare
  • Most Viewed Products Full List View
  • Product Content Full View
  • Product Content Replacements View
  • Product Content Availability View
  • Recently Viewed Products Full List View
  • Shopping Cart Full View
  • More Info Modal*

*Depends on widgets configuration

Display massive actions
Catalog > Product Listings

Determines if massive actions (such as add to cart or add to wish-list) are displayed or not. Available in:

  • Catalog
  • Most Viewed Products Full List View
  • Product Content Replacements View
  • Product Search Results
  • Recently Viewed Products Full List View
  • Wish List
Display more info
Catalog > Product Listings

Determines if More Info pop-up is displayed or not. Does not apply to the Most Viewed Thumbnail view, Recently Viewed Thumbnail view, Compare and Quick Order Widgets. More Info is available from:

  • Catalog
  • Product Content Replacements View
  • Recently Viewed Products
  • Most Viewed Products
  • Wish List
  • Product Search Results



Display savings (more info)
Catalog > Product Listings

Defines if savings are displayed in the More Info pop-up. Display savings is dependent on setting within SmarterCommerce Management Console (refer to Display Base Price and Savings setting).  Available in:

  • Most Viewed Items Full List View
  • Catalog
  • Product Content
  • Recently Viewed Items Full List View
  • Product Search Results
  • Wish List
  • Product Content  Replacements View
Display price break (more info)
Catalog > Product Listings

Defines if price break information is displayed in the More Info pop-up or not. Display price break is dependent on setting within SmarterCommerce Management Console (refer to Display Price Break and Required Quantity for Volume Discounts setting).  Available in:

  • Most Viewed Items Full List View
  • Catalog
  • Product Content
  • Recently Viewed Items Full List View
  • Product Search Results
  • Wish List
  • Product Content  Replacements View
Allow compare products
Catalog > Product Listings

Compare functionality allows you to view up to four products together for easy comparison. This setting defines if the option to compare products is displayed or not. Available in:

  • Most Viewed Items Full List View
  • Catalog
  • Product Content
  • Recently Viewed Items Full List View
  • Product Search Results
  • Wish List
  • Product Content  Replacements View
Products layout mode
Catalog > Product Listings

Defines the product list default layout. Options are Grid and List. This setting affects:

  • Most Viewed Items Full List View
  • Product Content Replacements View
  • Recently Viewed Items Full List View
  • Wish List

Allow user to change the products layout mode
Catalog > Product Listings
Products may be displayed in list or grid mode. This setting defines if the web user is allowed to change the products layout mode.
Maximum announcements to display
Catalog > Badge Announcements
The maximum badge announcements to display in products and nodes.
Badge announcement style
Catalog > Badge Announcements
A badge is a small piece of information displayed for the user. The available badge styles are circle, triangle, rectangle, and tail.
Unit of measure display mode
Inventory

Unit of measure display mode. The options are:

  • Do not display UOM
  • Show UOM as a display only field
  • Enable UOM selection by the user
Please note that when this setting allows the user to selection a new UOM the list of UOM available to the customer is dependent on the F41003 (primary and transaction UOM as well as all UOM that can be converted to those) or the F41002 (all UOM for the item).  In all cases the UOM must be configured for the Store to appear in the Ecommerce selection list.
Products default unit of measure calculation mode
Unit of Measure
Defines how the default unit of measure is calculated for products. The options are:
  • Use P4210 settings
  • Use Product Pricing UOM
  • Use Product Primary UOM
  • Use a specific UOM
Products Default UOM
Unit of Measure
Determines the specific units of measure available for products.
Enable profile cookies
Web Site > Cookies
Enable profile cookies (used for Remember Me functionality and to save language preference).
Enable preferences cookies
Web Site > Cookies
Enable preferences cookies (used to save web user preferences like page size, sort by, search mode, delimiter, and layout mode).
Guest Users - Display add to cart
Web Site > Guest Users
Determines if add to cart will be available for guest (unauthenticated) users.
Display product images
Web Site > General Behavior

You can decide to show/hide product images on your website. When the setting is setup to show images, you must configure the Product Thumbnail Sizes.

This setting affects all widgets except Catalog and Search Results. These widgets have a property in the designer to allow user to configure to Show/ Hide images and to select the image thumbnail size.

Product listing thumbnail size
Web Site > General Behavior
This size is used in grid and list mode listings. For example, in widgets like Wish List, Most Viewed, Recently Viewed, etc. This size is also used in the Content display mode. For example, in widgets like Shopping History, Shopping Cart, Invoice History, etc. SmarterCommerceThumbnail 120X120 recommended.  Please note if you image(s) are smaller than the recommended size you may see excess white space.  For more information on creating new thumbnail sizes please click  here
Product listing small thumbnail size
Web Site > General Behavior
This size will be used in carousels, in the Tabular display mode, compare bar, and in floating popups. If required, select a smaller size than the Product listing thumbnail size. SmarterCommerceCarousel 80X80 recommended. Please note if you image(s) are smaller than the recommended size you may see excess white space.  For more information on creating new thumbnail sizes please click  here
Action after add to cart
Web Site > General Behavior
Determines behavior upon adding items to the cart. The options are:
  • Redirect to Shopping Cart
  • Stay on the same page
  • Display added to cart confirmation modal
Allow check for replacements
Inventory
Replacement items are offered when you attempt to add an obsolete item to the cart.  This setting determines if checking for replacement items is allowed.
Paging display mode
Web Site > Paging Configuration
The options are:
  • Enable user to change the number of records per page
  • Show fixed records per page
  • No paging
Number of products per page - On Grid
Web Site > Paging Configuration
Define the numbers of products the to display per page in Grid Mode.
Default page size - On Grid
Web Site > Paging Configuration
The default page size when viewing products in grid mode.
Number of products per page - On List
Web Site > Paging Configuration
Define the numbers of products the to display per page in List Mode.
Default page size - On List
Web Site > Paging Configuration
The default page size when viewing products in list mode.
Display hover image
Web Site > General Behavior
When the setting is on, the second image from the product gallery will be used as hover image.
Catalog provider
Catalog

Defines the website catalog provider. The options are:

  • Internal with App Search
  • Internal with Elasticsearch
  • External
Address Book Category Code
Catalog > Product Filter Assignments
Defines the customer category code (1-30) used to filter products in the catalog.
By default configure products to allow decimals in quantity field
Inventory
This setting will be used when adding new Products to the module.
Please note: User can turn this functionality on only when the JDE data dictionary QTYINV is configured with “Display Decimal” > 0. Please review Oracle documentation regarding decimal places/updates to implement this functionality.
Guest Users - Display Price Information
Web Site > Guest Users
Determines if pricing information will be available for guest (unauthenticated) users.
Display product images in tabular mode
Web Site > General Behavior
Determines if product images will be displayed in tabular mode.
Number of matrix variations in list mode
Web Site > General Behavior
Use this setting to limit the number of visible options of the segment that was selected as the matrix product variant, for example color. Leave empty or zero to display all variation values.
Number of matrix variations in grid mode
Web Site > General Behavior
Use this setting to limit the number of visible options of the segment that was selected as the matrix product variant, for example color. Leave empty or zero to display all variation values.
Configure paging for grid and list mode
Web Site > Paging Configuration

Internal setting to switch configuration between list and grid mode settings.

Google Analytics version
Web Site > Google Analytics

.Google Analytics version in use. Choose from:

  • Google Analytics 4 (GA4)
  • Universal Analytics (UA)
  • Universal Analytics (UA) and Google Analytics 4 (GA4)
Google Analytics Product category code
Web Site > Google Analytics

You may pass an item UDC code from JDE to Google Analytics to appear in the Item Category in Google Analytics. For this setting, enter the ERP Item Master (F4101) category code you wish to use.

Google Analytics Product brand category code
Web Site > Google Analytics
You may pass an item UDC code from JDE to Google Analytics to appear in the Item Brand in Google Analytics. For this setting, enter the ERP Item Master (F4101) category code you wish to use.
Display product number
Inventory
For CMS stores this is the product number that will be displayed upon entry and validation of a product. For Electronic Invoice Presentment and Payment (EIPP) stores this is the product number shown in order and invoice history. This is also the product number that will be used throughout the Management Console.
Licenses
  • Premier.Catalog
