Catalog
Release 7.0
scProductContent
Product content lets authenticated and unauthenticated web users add the product to the cart and/or see the information below:
- Product Content (including paragraph information)
- Unit price (will obey setting for Taxed Pricing)
- Product availability (based on setup)
- Add to cart
- Add to wish list (only for authenticated users and only parent (not child) matrix items)
- Request Quote (only for authenticated customers)
- View full details option
- Price break information (if configured)
- Share product through social networking/email
This control is used to display product information in compact view.
Sample Views

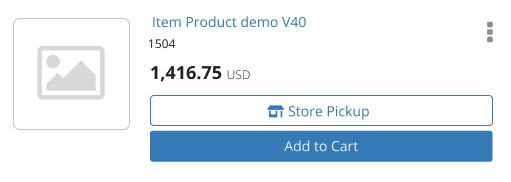

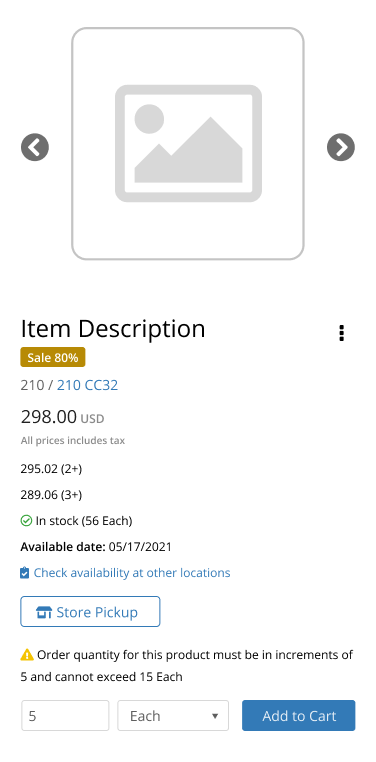

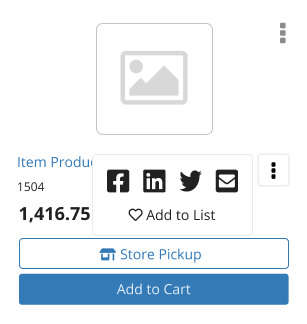

1- Compact
Display Share Content by Email
Turns on/off the share content by email.
Display Share Facebook
Turns on/off the facebook share.
Display Share LinkedIn
Turns on/off the linkedin share
Display Share Twitter
Turns on/off the twitter share.
Display Add to Cart
Hide/Show add to cart option. This configuration overrides the
SmarterCommerce Settings Module values. Default value is true.
Display Add to List
Hide/Show add to list option. This configuration overrides the
SmarterCommerce Settings Module values. Default value is true.
Display Image
Hide/Show image. This configuration overrides the SmarterCommerce
Settings Module values. Default value is true.
Product Thumbnail Size
Thumbnail size for product image. This configuration overrides the
SmarterCommerce Settings Module values. Default value is Original Size. Available
when Display Image is checked.
Short Product Number
Used to present associated product content using the Short Item Number.
If parameter is set to zero (0) the widget must use query string to retrieve
and render associated product. Default value is zero.
Sample Views

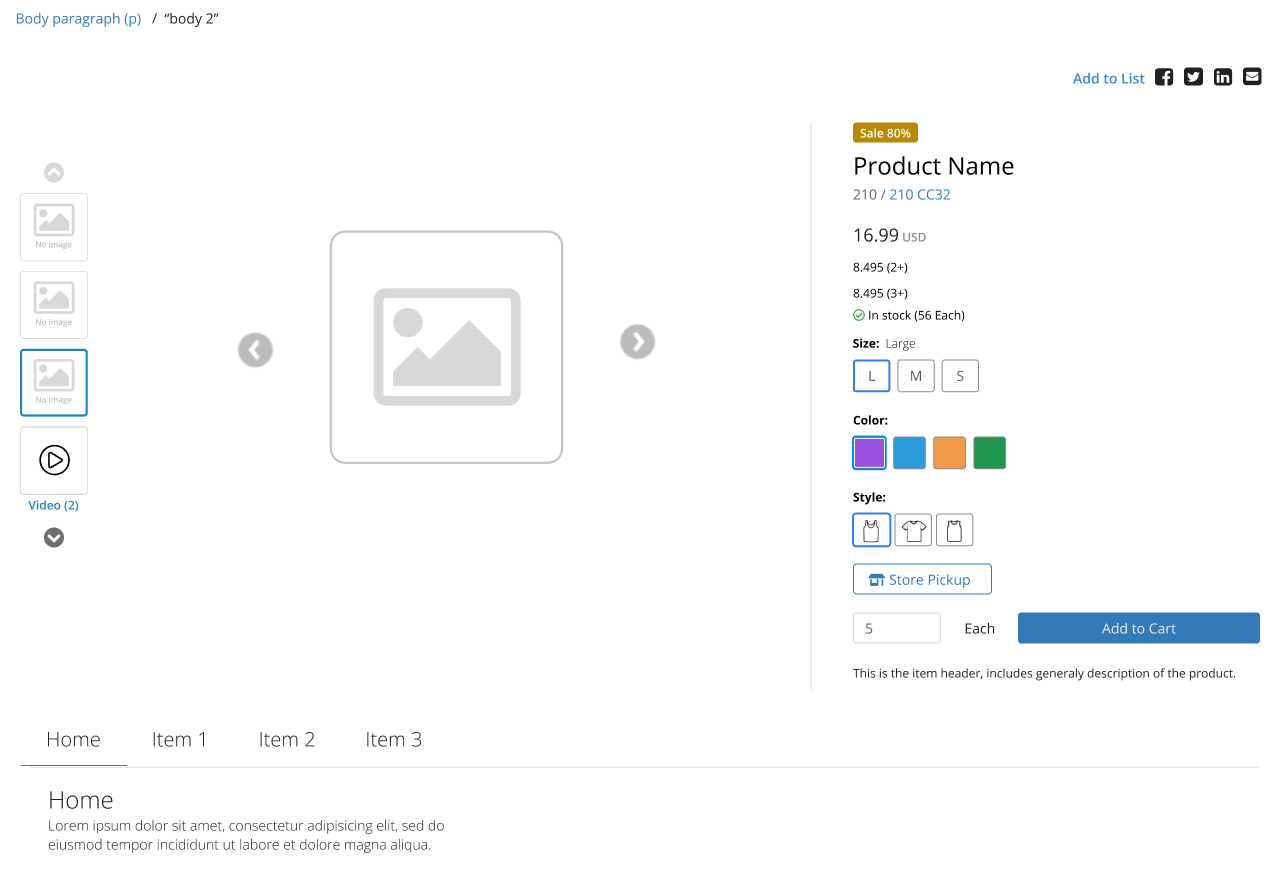

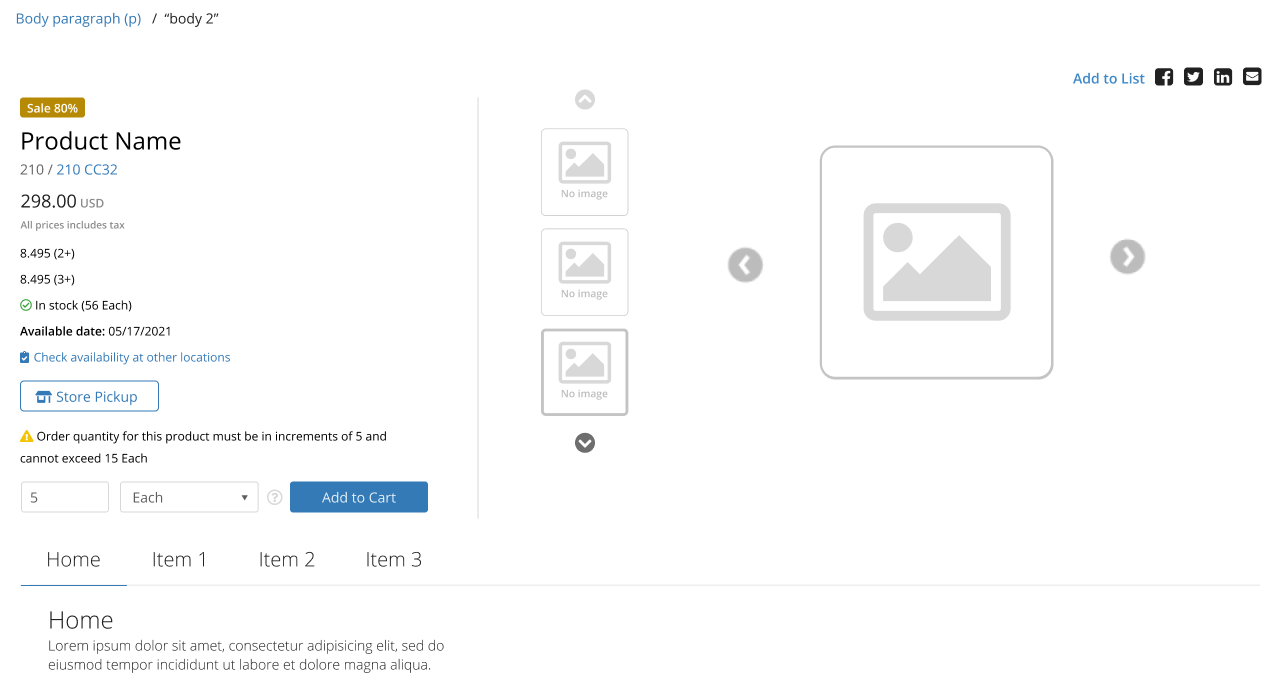

1- Product Content
Product content shows full details on the product. The carousel will show all the product images, but is hidden when only one picture is available
Content is displayed in vertical mode.

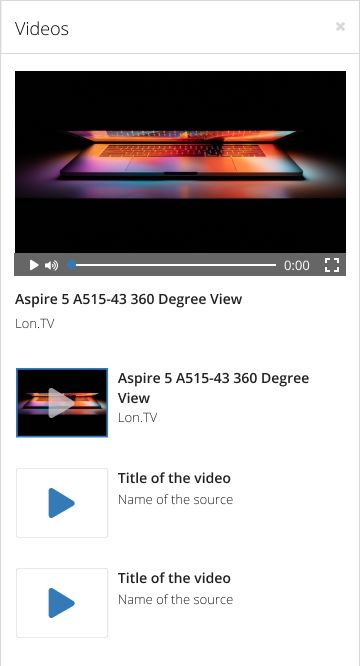

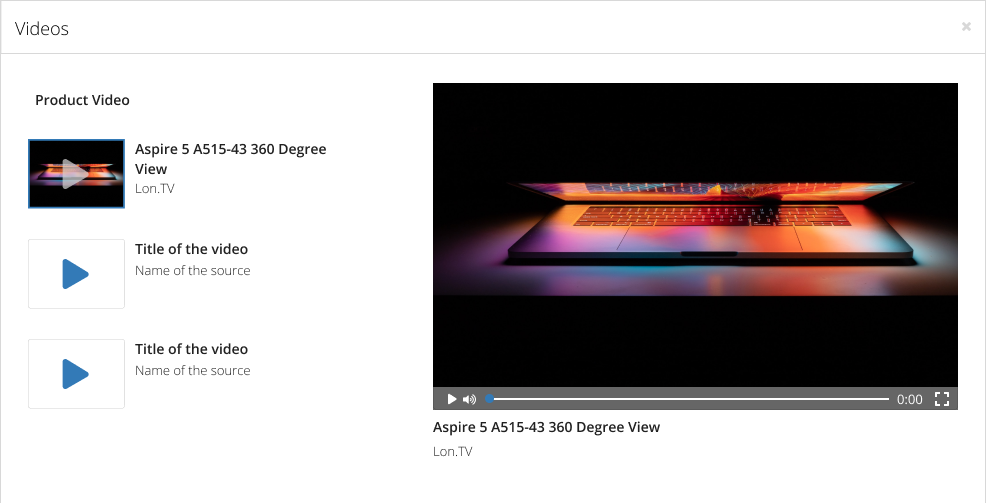

2- Video Gallery Modal
The gallery will allow the user to navigate through all available videos for the product.

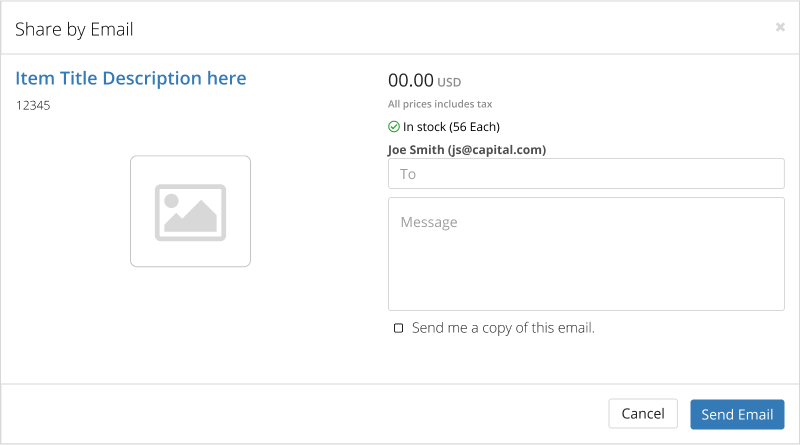

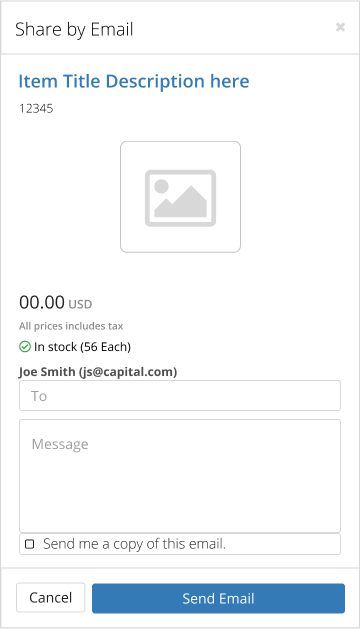

3- Share By Email Modal
Authenticated web users may share product information via email.

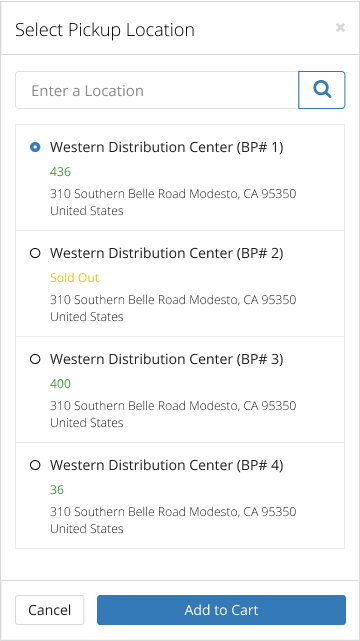

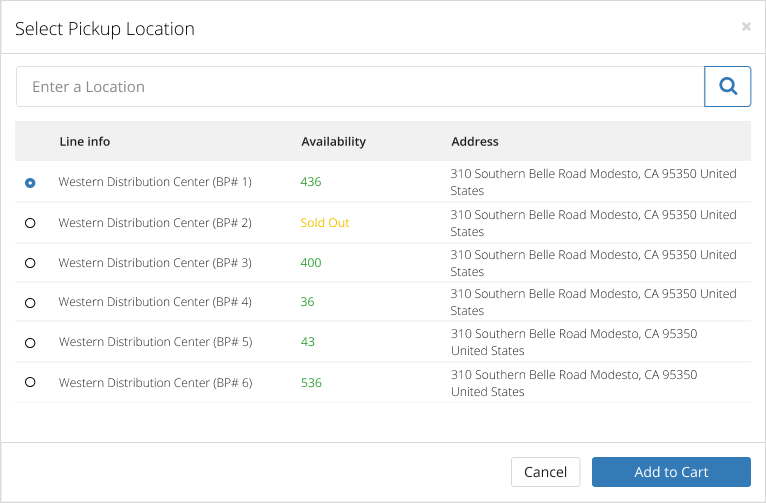

4- Pickup Location Modal
Based on configuration and conditions (seen below) the user may have the option to pick up their items directly from the store. This modal allows the user to choose which store they would like to get their products from when allowed. Locations displayed are those designated as pickup locations in the Management Console Branch Plant. Additionally, the modal will display only locations where the item is available.
The following criteria determine the display of the modal:
Default Carrier and Default Mode of Transportation settings are configured.
The user is authenticated and has permission to add items to cart.
The user is not authenticated and the Management Console setting to Display Price and Add to Cart is turned on
Store Pickup option is not displayed for items that are displayed always as Available
If item is matrix item:
In Matrix Mode the option to select Store Pickup will not be available
In Single Mode Store Pickup will be available when a valid item is selected (segment values selection)
If item is configured item:
In Item Content View (Compact and Full View), and Configuration View the option to select Store Pickup will not be available.
If item is Kit item:
The option to select Store Pickup will not be available.
Item must be valid based on the Item Restriction validations, for example Stocking Type, Category Code, Customer Restrictions.
5- Matrix Product Content
Matrix product content can be displayed images, background color, and descriptions.

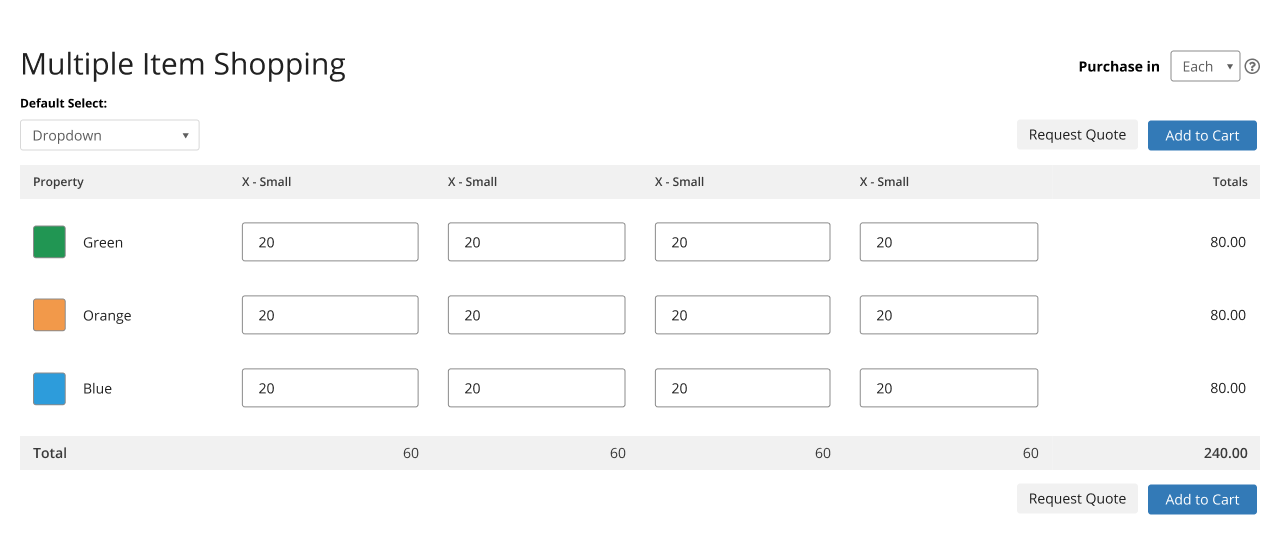

6- Matrix Company
This view enables the user to enter quantities for multiple matrix items at the same time.

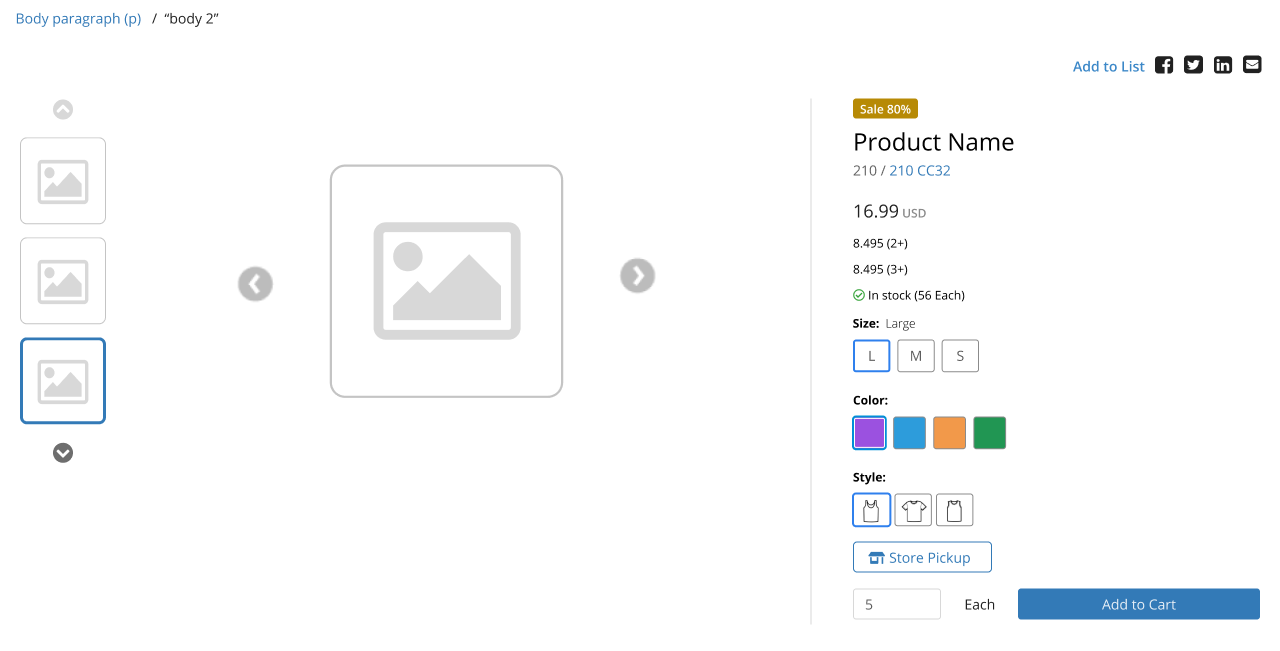

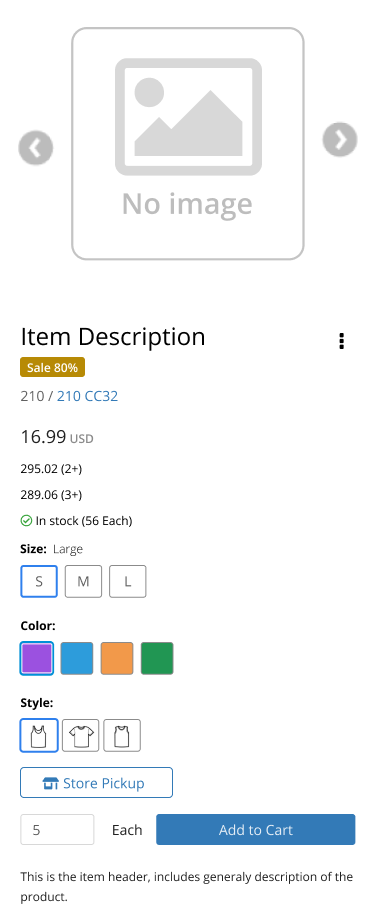

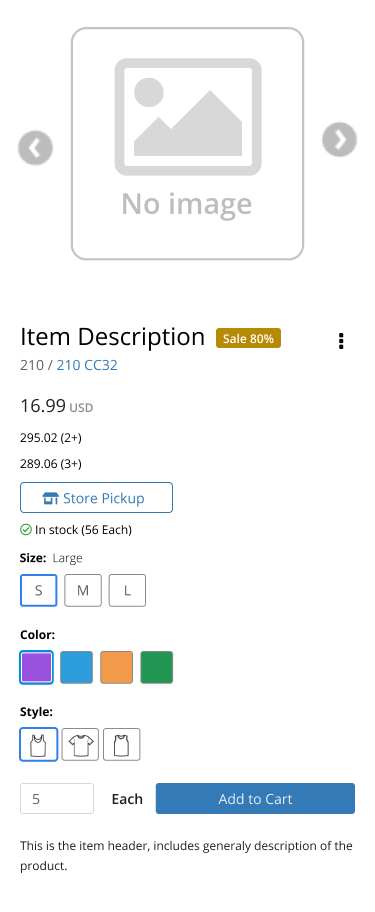

7- Matrix Individual
This view allows the user to enter quantity for one specific matrix item at a time.
Carousel is hidden and paragraph is display in vertical mode.

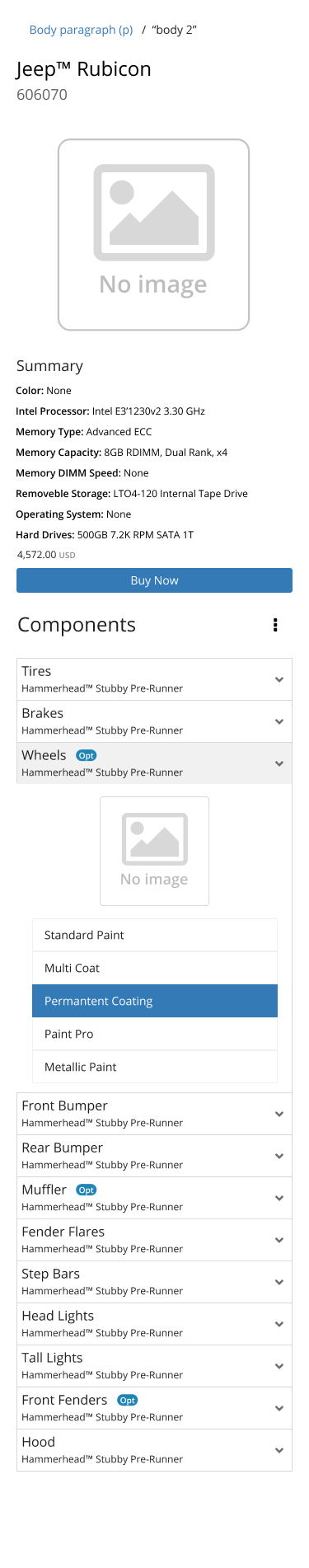

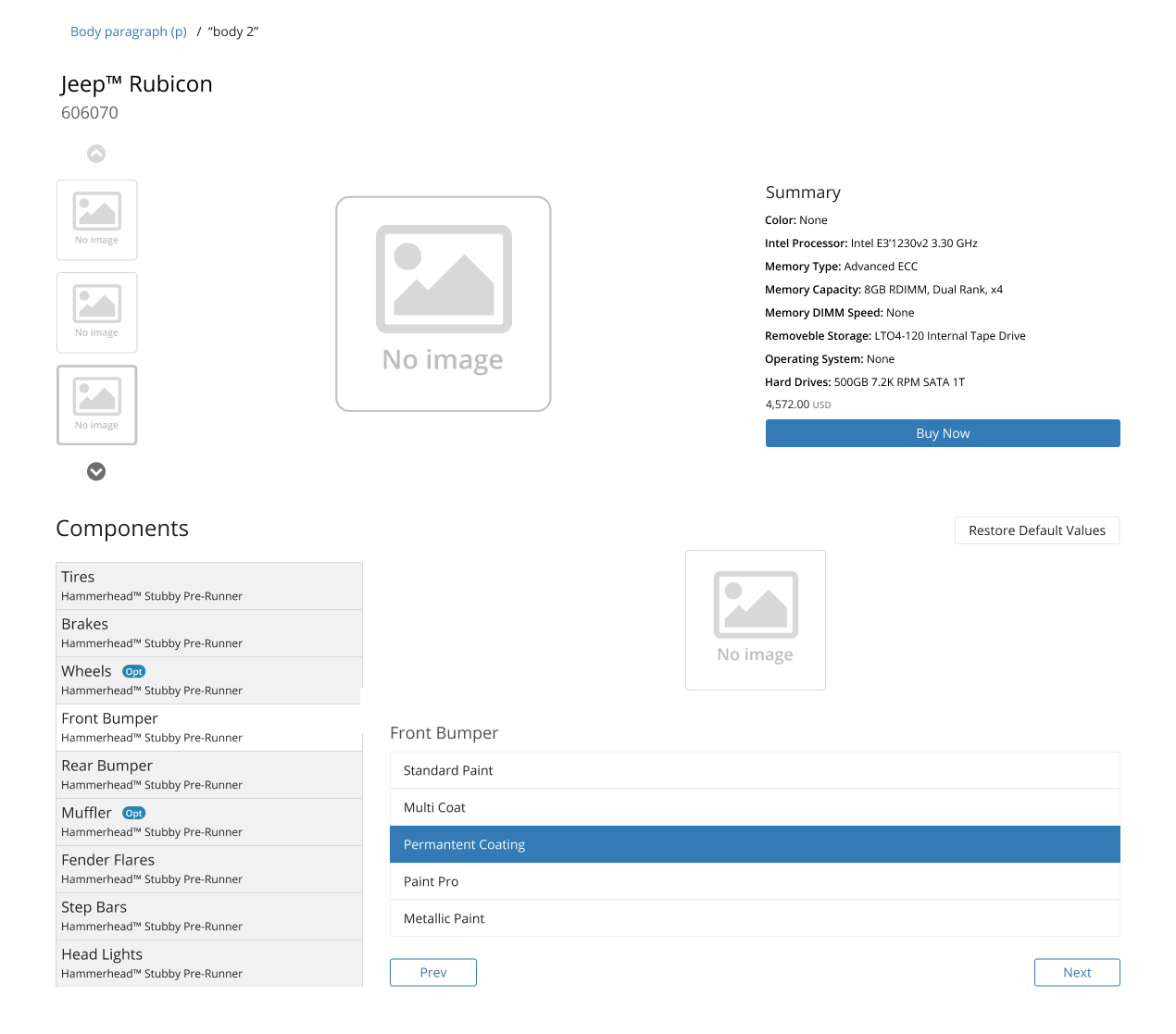

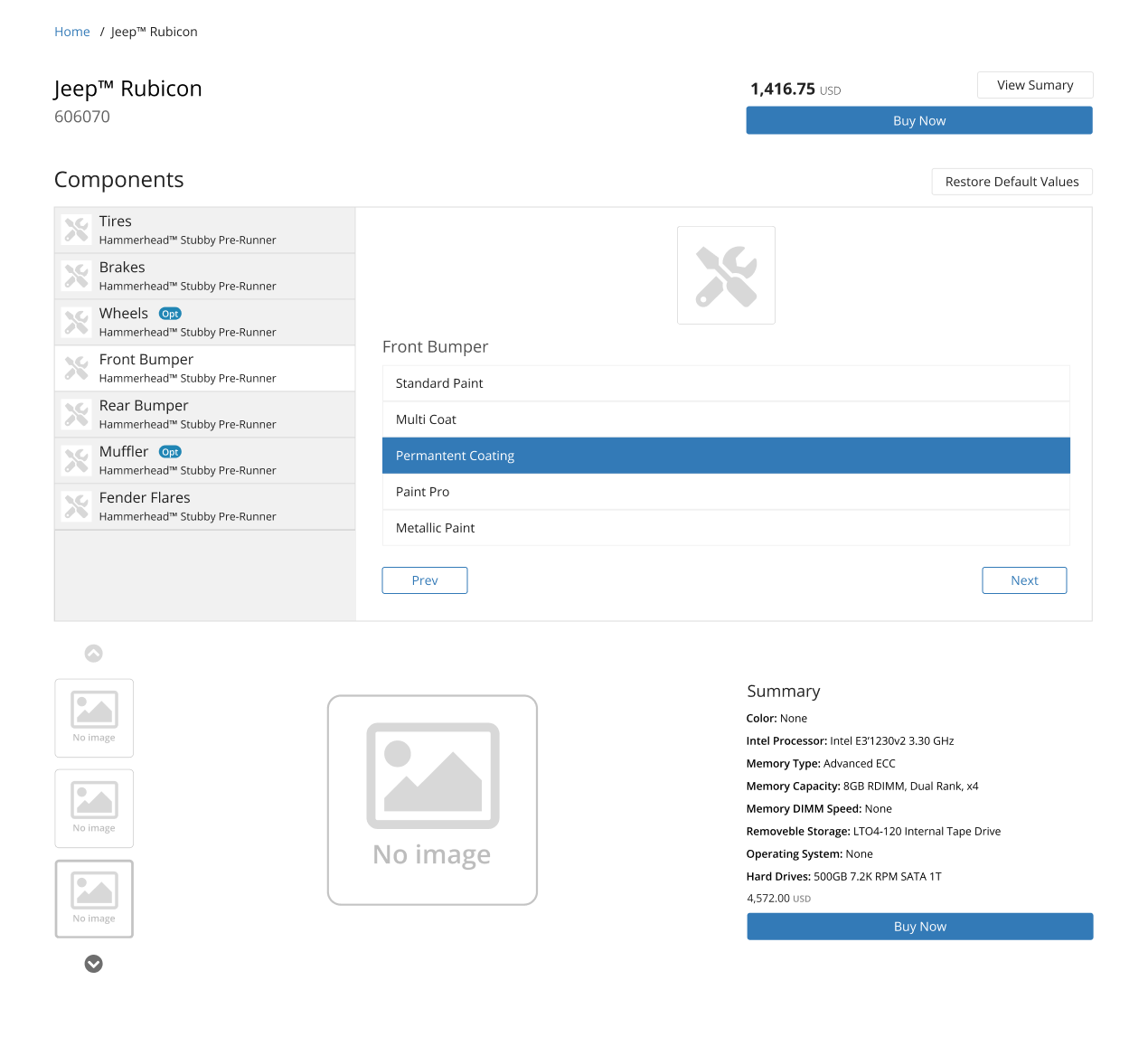

8- Configured Product Components - Tabs Display Mode
Configured products can be displayed in tabs mode or list mode (with image on header or image on value). Below is an example of tabs display.

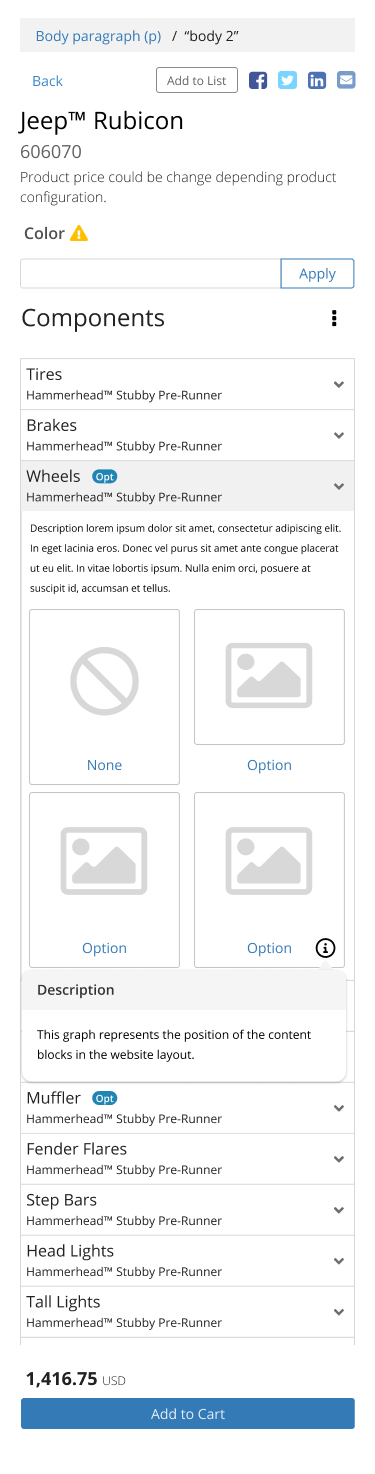

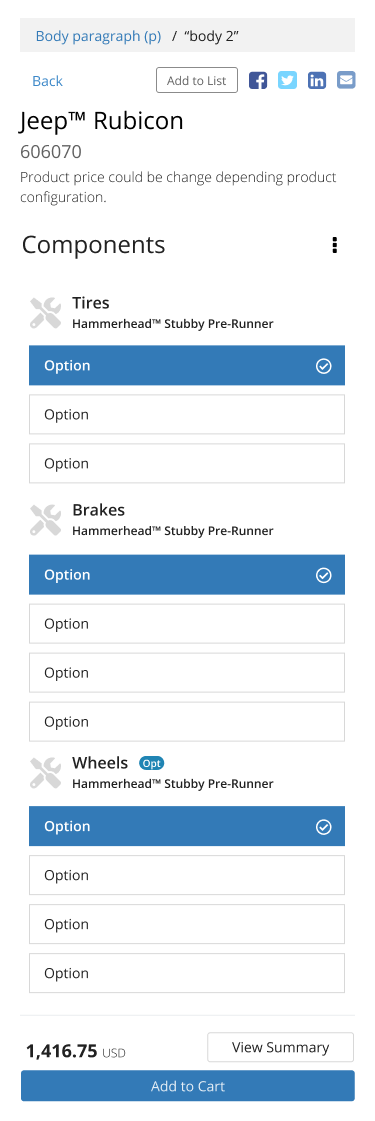

9- Configured Product Components - List Display Mode (Image on Header)
Configured products can be displayed in tabs mode or list mode (with image on header or image on value). Below is an example of list display with the image on header.
3e3636e8-fbbc-40c2-add6-4c09d3275b03.png?sfvrsn=7ea22376_6)

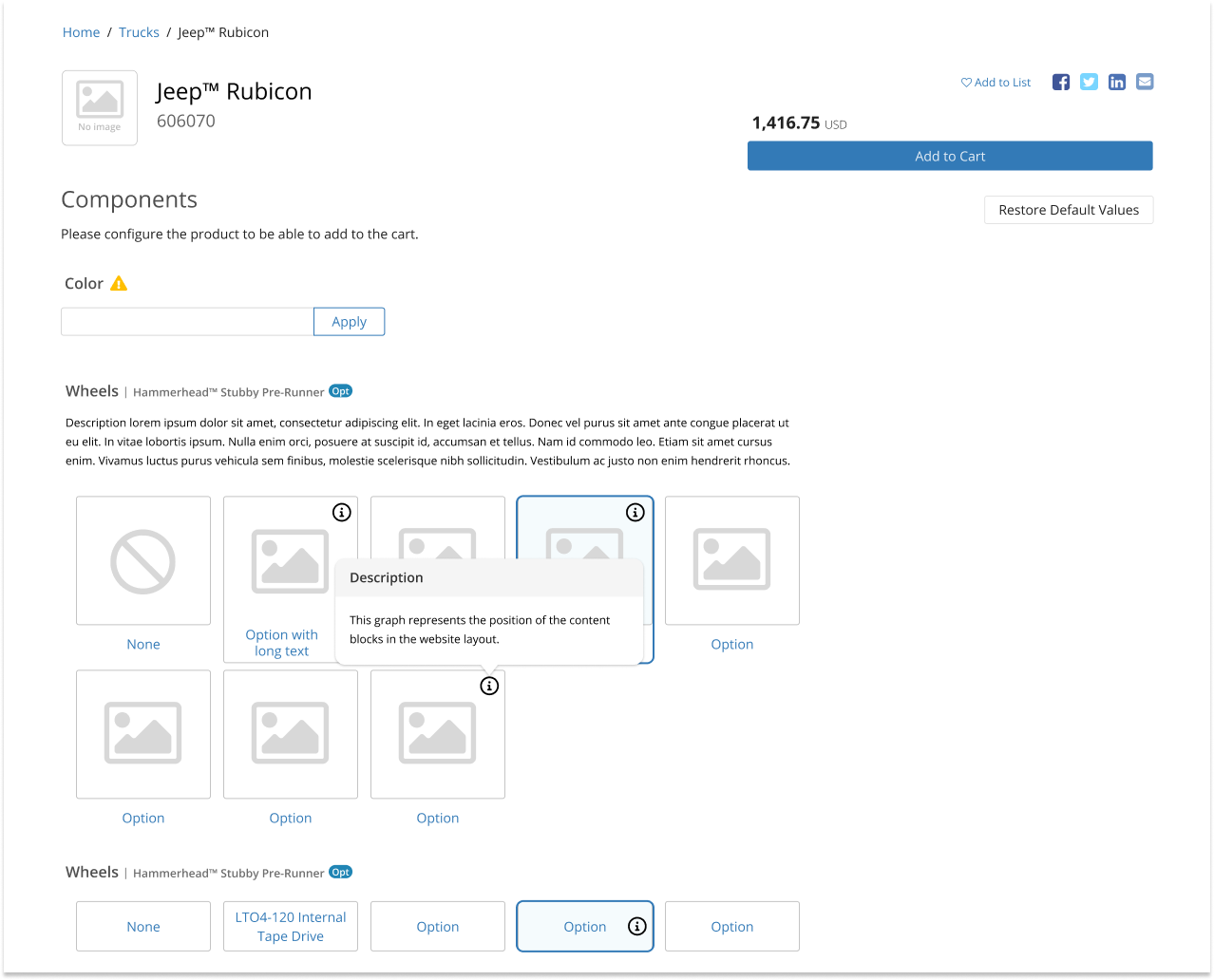

10- Configured Product Components - List Display Mode (Image on Value)
Configured products can be displayed in tabs mode or list mode (with image on header or image on value). Below is an example of list display with the image per component value.

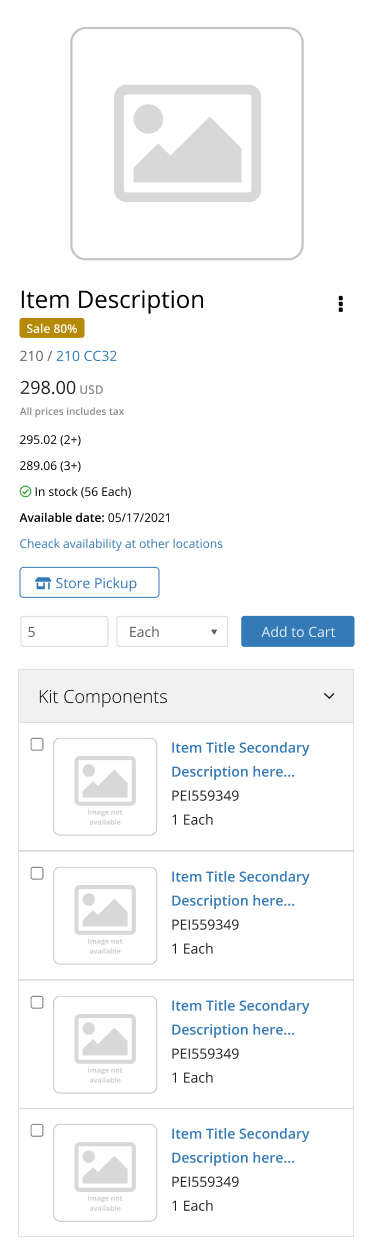

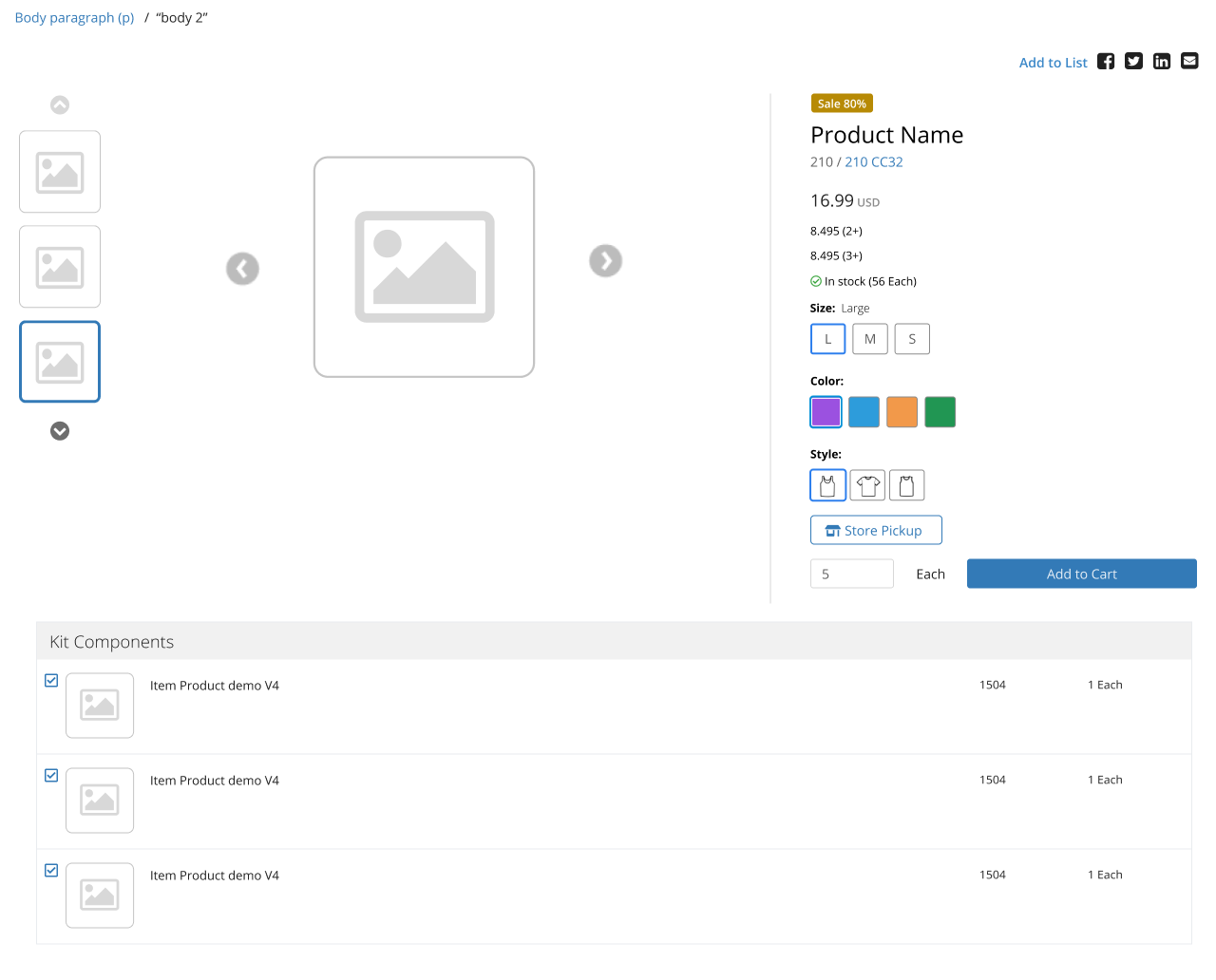

11- Kit Product
Kit processing allows the user to order a bundle of items known in JDE as a kit. Typically kits are setup with a parent item and then component items. Some component items are required and some are not. In the product content the user will see the kit components expanded. They may pick and choose which optional kit items to include in the kit. However, required items cannot be removed from the kit. Also, please note that the user cannot alter the quantity of the item offered in the kit nor can they alter the unit of measure for any of the components.

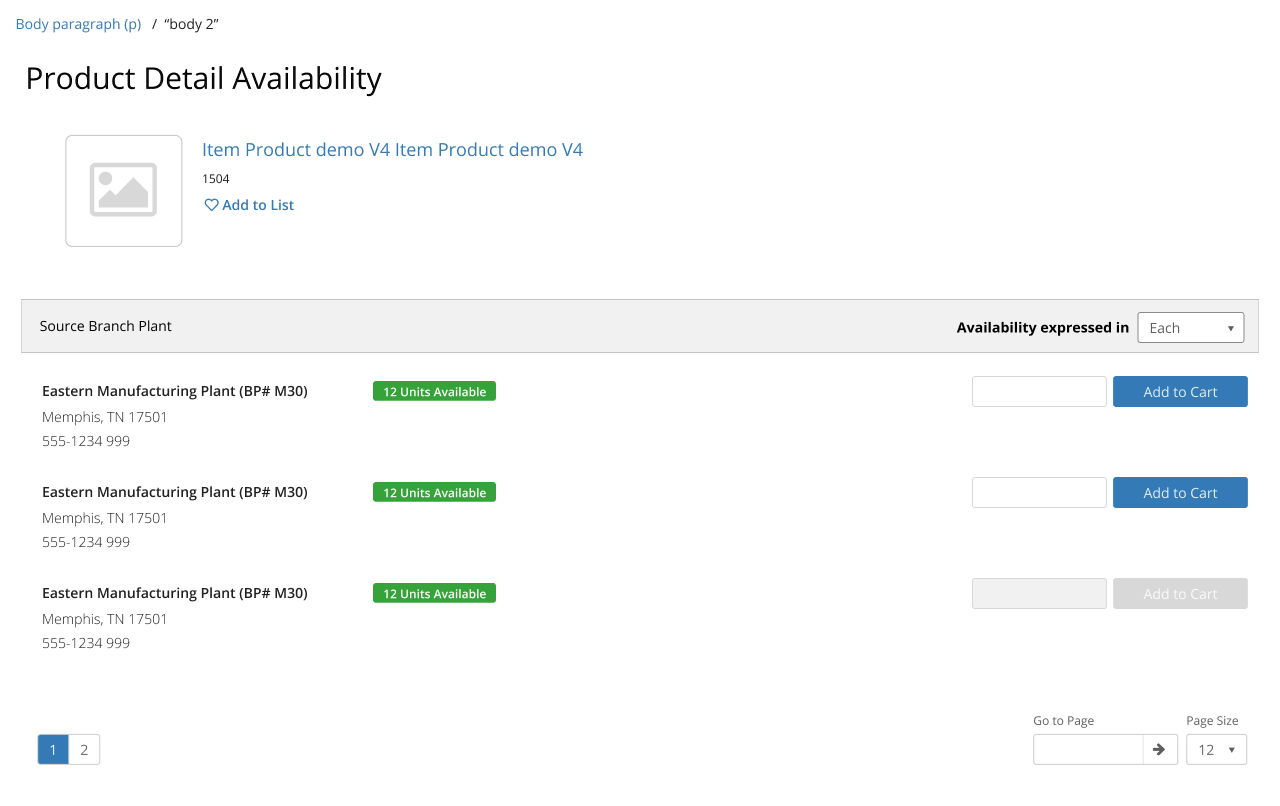

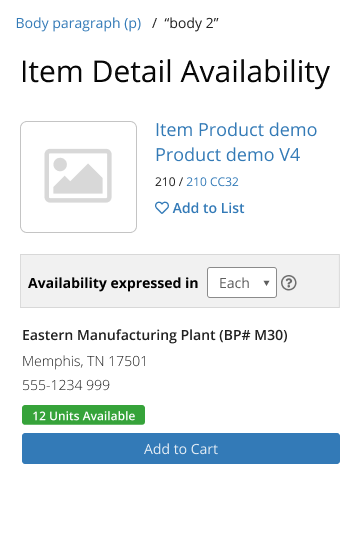

12- Product Availability
Product detail availability can be used when the product desired is not in the default branch. The user will see which branch plants have the item and in what quantity.

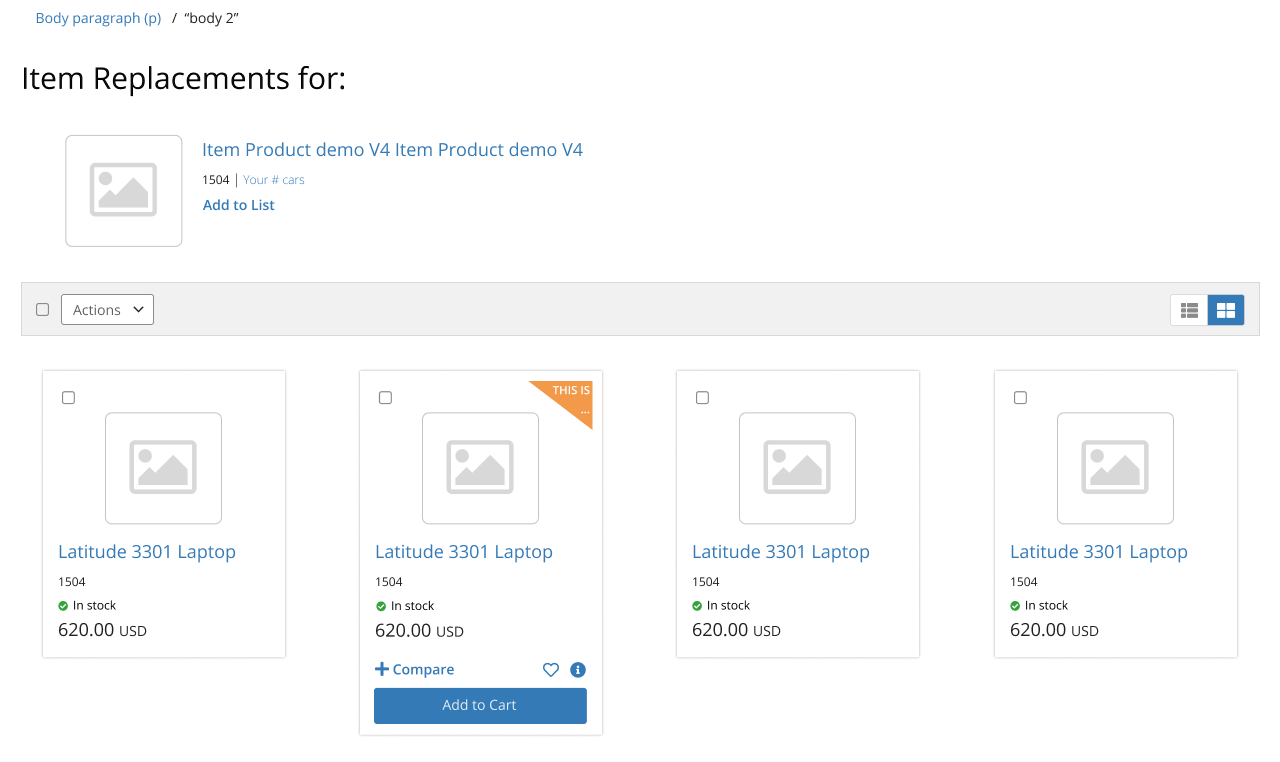

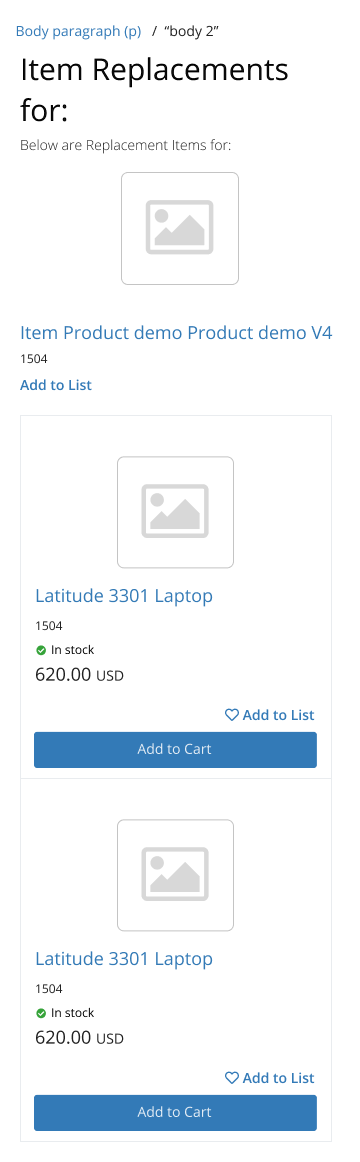

13- Product Replacements
Product replacements may be setup in JDE using the Work with Item Cross Reference (P4104) application. When the user attempts to purchase a product that has no availability and a replacement item is available they will have the opportunity to purchase a replacement item.
Short Product Number
Used to present associated product content using the Short Item Number.
If parameter is set to zero (0) the widget must use query string to retrieve
and render associated product. Default value is zero.
Display Savings
Display or hide savings.
For savings display, please verify Management Console setting that turns on this functionality is activated
Display Price Break
Turns on/off the price break display.
Display Share Content by Email
Turns on/off the share content by email.
Display Share Facebook
Turns on/off the facebook share.
Display Share Twitter
Turns on/off the twitter share.
Display Share LinkedIn
Turns on/off the linkedin share
Thumbnail Carousel Display Mode
Defines the display mode of the Images thumbnail carosuel. Default value vertical.
Paragraphs Display Mode
Display Paragraphs on List or Tabs.
Display Total Per Matrix Row
Display Matrix Total items Per Row when mode is Multiple. Displayed only when individual or company display mode is Multiple.
Display Total Per Matrix Column
Display Matrix Total items Per Column when mode is Multiple.
Use Product Meta Keywords Tag
Inject SmarterCommerce Product Search Keywords as SEO keyword metatag.
Default value is false.
Cross Reference Type for Up-Sell or Cross-Sell Products
Defines the product cross-reference type value used to represent up-sell
or cross-sell products. Use the UDC Code 41/DT. Default value is empty.
Max Products to Display by Page
Product count displayed by groups. Default value is 3.
Product Title Display Position
The available options
are Top bar and Product Information Position. Default value is Top bar.
Product Information Display Position
Product information
shows the price, availability and add to cart. Product images are displayed in
the opposite position. The available options are Section 1 and Section 2.
Default value is Section 2.
Product HTML Content Display Position
The available options
are Above Product Information, Below Product Information, Section 3. Default value
is Below Product Information.
Use Default Configuration
Default configuration
for Product Attributes and Product Documents position. Default values are 1 and
2 respectively.
Customize
User can customize
the Product Attributes and Product Documents positions or even disable these
sections.
Include Product Attributes in Content Sections
Default value is true.
Product Attributes Position
Available when Include Product Attributes
in Content Sections is turned on. Default
value is 1.
Include Product Documents in Content Sections
Default value is
true.
Product Documents Position
Available when Include Product Documents
in Content Sections is turned on. Default
value is 2.
Display Mode for Individual Records
The available options
are Single, Multiple (matrix), and Single and Multiple. Default value is Multiple
(matrix).
Display Mode for Company Records
The available options
are Single, Multiple (matrix), and Single and Multiple. Default value is
Multiple (matrix).
Product Listing Layout for Product Replacement View
Defines the startup mode for the Product listing in Replacements view: List or Grid. User can use the value that is defined in the Settings Module or override it at widget level. Default value for override mode is Grid.
Configured Item Components Display Mode
Display Configured Item Components on List or Tabs.
Decimal Places to Display Prices
Sales > Settings
Determines how many decimal places are displayed for the unit price.
Cross Reference Type for Customer Product Number
Ecommerce > Settings
JD Edwards item cross reference type code representing customer item number.
Will Call - Default Mode of Transportation
Shipping > Settings
Determines the default mode of transportation for pick up/will call orders.
Price Break Behavior
Sales > Settings
Determines if price break information will be displayed in Product Content and in More Info (first five quantity breaks will display).
Enable Taxed Prices
Sales > Settings
JDE functionality for taxed pricing must be enabled or this option will not be enabled. When JDE taxed pricing is on tax is calculated using a JDE business function. Options are:
- Yes - When JDE taxed pricing is on and this setting is set to yes taxed prices will be seen for all order transactions (including but not limited to Sales, Quotes & Credits) in add mode. In update mode this setting is bypassed and the taxed price feature will behave based on how the original order was placed.
- No - When JDE taxed pricing is on, but this setting is set to no tax will not be included in the prices seen for all order transactions (including but not limited to Sales, Quotes & Credits) in add mode. Please note when the orders are placed they will be processed with tax off. In update mode this setting is bypassed and the taxed price feature will behave based on how the original order was placed.
Display Base Price and Savings
Sales > Settings
Base price and savings are calculated using JD Edwards functions and returned to the product content and cart Ecommerce for display.
Sales Restriction - by Cat Code
Inventory > Settings
Determines the inventory category code values which can be purchased via the web site.
Price Break Required Quantity
Sales > Settings
If price break behavior display is set to “Show” enter the maximum quantity across all pricing adjustments within JD Edwards that if provided will return a price break. For example, if product price break discounts are provided at quantity of 5, 10 and 15, enter 15 as the price break quantity.
Test Email
Email > Settings
When test mode is selected you can dictate the email address to which all system emails will be sent. However, once the system is set to live mode the email will be selected based on the program.
Mode
Email > Settings
The Email Component engine can deliver emails in two basic modes:
Test Overrides email associated to user and sends all emails to one specific email address noted in Test mail field. Test mode should be in use while in a non-production environment
Live Sends emails to user associated with transaction. Live mode should be in use for production environment
Maximum Days Email Headers Are Stored
Email > Settings
Email headers older than this number of days will be removed by the scheduler job. Header information includes:
Document ID
Email Type
Sent Date
Resent Date
Recipient
Maximum Days Email Details Are Stored
Email > Settings
Email details older than this number of days will be removed by the scheduler job.
Save Email Log
Email > Settings
When enabled all emails for the templates selected will be logged. When enabled you can decide how long the emails should be kept. A scheduler job will run to clean up the email log. By default the logging level is set to Debug and captures minimal data about the email sent. However, in Trace mode the log will contain a full XML document. When set to no, the Email Log menu option will not be displayed in the menu.displayed in the menu.
Display price break (more info)
Catalog > Product Listings
Defines if price break information is displayed in the More Info pop-up or not. Display price break is dependent on setting within SmarterCommerce Management Console (refer to Display Price Break and Required Quantity for Volume Discounts setting)
Number of products per page - On List
Web Site > Paging Configuration
Page size options when viewing in list mode.
Display hover image
Web Site > General Behavior
When the setting is on, the second image from the product gallery will be used as hover image.
Products Default UOM
Unit of Measure
Determines the specific units of measure available for products.
Carousel images per page
Web Site > General Behavior
A carousel is used to rotate images for viewing. This setting will be used in Product Content and More Info to determine the number of images per page.
Attribute value thumbnail size
Web Site > General Behavior
When an attribute is set with display mode as image or color this is the thumbnail size that will be used.
Display price mode
Catalog > Product Listings
Defines if the product price is displayed or not. Options are:
- Price calculated from ERP
- Do not display price in listings
- Price is displayed from the Products module
Products default unit of measure calculation mode
Unit of Measure
Defines how the default unit of measure is calculated for products. The options are:
- Use P4210 settings
- Use Product Pricing UOM
- Use Product Primary UOM
- Use a specific UOM
Configured component header thumbnail size
Web Site > General Behavior
This setting will be used in Product Content widget.
Product listing small thumbnail size
Web Site > General Behavior
This size will be used in carousels, in the Tabular display mode, compare bar, and in floating popups. If required, select a smaller size than the Product listing thumbnail size.
Configured component detail thumbnail size
Web Site > General Behavior
This setting will be used in Product Content widget.
Guest Users - Display add to cart
Web Site > Guest Users
Determines if add to cart will be available for guest (unauthenticated) users.
Shopping Cart summary mode
Web Site > General Behavior
The options are:
- Show Total Products
- Show Total Lines
Allow check for replacements
Inventory
Replacement items are offered when you attempt to add an obsolete item to the cart. This setting determines if checking for replacement items is allowed.
Display more info
Catalog > Product Listings
Determines if More Info pop-up is displayed or not. Does not apply to the Most Viewed Thumbnail view, Recently Viewed Thumbnail view, Compare and Quick Order Widgets.
Display savings (more info)
Catalog > Product Listings
Defines if savings are displayed in the More Info pop-up. Display savings is dependent on setting within SmarterCommerce Management Console (refer to Display Base Price and Savings setting)
Display product number
Inventory
For CMS stores this is the product number that will be displayed upon entry and validation of a product. For Electronic Invoice Presentment and Payment (EIPP) stores this is the product number shown in order and invoice history. This is also the product number that will be used throughout the Management Console.
Product content thumbnail size
Web Site > General Behavior
This size will be used in Product Content and More Infopop-up.
Show product number
Catalog > Product Listings
Defines if the product number is displayed on the website.
Default page size - On List
Web Site > Paging Configuration
The default page size when viewing products in list mode.
Check Availability Mode For Customer/Consumer
Catalog > Product Listings
Defines the check availability mode for Customer/Consumer. The options are:
- Do not display availability
- Display availability status and quantity available
- Display availability status
Quantity available display is dependent on P4210 processing option 'Activate Availability Checking' if the value is Blank (Bypass availability checking), then quantity available will not be displayed on the website.
Unit of measure display mode
Inventory
Unit of measure display mode. The options are:
- Do not display UOM
- Show UOM as a display only field
- Enable UOM selection by the user
Allow compare products
Catalog > Product Listings
Compare functionality allows you to view two or more products together. This setting defines if the option to compare products is displayed or not.
Products layout mode
Catalog > Product Listings
Defines the product list default layout. Options are Grid and List.
Maximum announcements to display
Catalog > Badge Announcements
The maximum badge announcements to display in products and nodes.
Display add to list
Catalog > Product Listings
Determines if the option to add products to wish-list is displayed or not.
Default page size - On Grid
Web Site > Paging Configuration
The default page size when viewing products in grid mode.
Display add to cart
Catalog > Product Listings
Determines if the add to cart option is displayed or not. Does not apply to the Quick Order widget.
Check Availability Mode For Sales Person
Catalog > Product Listings
Defines the check availability mode for Sales Person. The options are:
- Do not display availability
- Display availability status and quantity available
- Display availability status
Quantity available display is dependent on P4210 processing option 'Activate Availability Checking' if the value is Blank (Bypass availability checking), then quantity available will not be displayed on the website.
Display product images
Web Site > General Behavior
Determines if product images will be displayed or not.
Paging display mode
Web Site > Paging Configuration
The options are:
- Enable user to change the number of records per page
- Show fixed records per page
- No paging
Badge announcement style
Catalog > Badge Announcements
A badge is a small piece of information displayed for the user. The available badge styles are circle, triangle, rectangle, and tail.
Product listing thumbnail size
Web Site > General Behavior
This size is used in grid and list mode listings. For example, in widgets like Wish List, Most Viewed, Recently Viewed, etc. This size is also used in the Content display mode. For example, in widgets like Shopping History, Shopping Cart, Invoice History, etc.
Number of products per page - On Grid
Web Site > Paging Configuration
Page size options when viewing in grid mode.
Allow user to change the products layout mode
Catalog > Product Listings
Products may be displayed in list or grid mode. This setting defines if the web user is allowed to change the products layout mode.
Replacement items cross-reference type
Inventory
Replacement items cross-reference type (UDC 41/DT).
Action after add to cart
Web Site > General Behavior
Determines behavior upon adding items to the cart. The options are:
- Redirect to Shopping Cart
- Stay on the same page
- Display added to cart confirmation modal
Enable profile cookies
Web Site > Cookies
Enable profile cookies (used to enable Remember Me and to save language preference).
Enable preferences cookies
Web Site > Cookies
Enable preferences cookies (used to save web user preferences like page size, sort by, layout mode).
Display Notify Me
Modules > Notify Me
If the widget is configured
to display availability and the product is backordered or sold out, the user
can subscribe to receive a notification when the product is back in stock.
Notification Frequency (Days)
Modules > Notify Me
Set the frequency for
checking and sending emails when the product is back in stock. For example, 1
means that the process will run daily.
Display captcha in notify me
Modules > Notify Me
Check to force captcha challenge functionallity. Challenge-response test which forces web user to enter a correct response code prior to continuing with notify me
Enable audio code
Modules > Notify Me
The audio code allows the user to listen to the captcha challenge.
