Catalog

Release 7.0

Catalog

Watch Videos
scCatalog sc-catalog
Catalog lets authenticated and unauthenticated web users view and navigate through the catalog. This widget displays catalog navigation in sidebar mode. The widget will be hidden if there is no catalog available or if catalog provider is external (Management Console setting).


Catalog

Sample Views
1- Nodes List Display

This view is used to render catalog category nodes and any associated badges. An option to switch between grid and list view is available and the navigation breadcrumb is displayed.

Sidebar is hidden and display mode action is aligned to title.
sc-catalog_node-listing-grid-mb-1

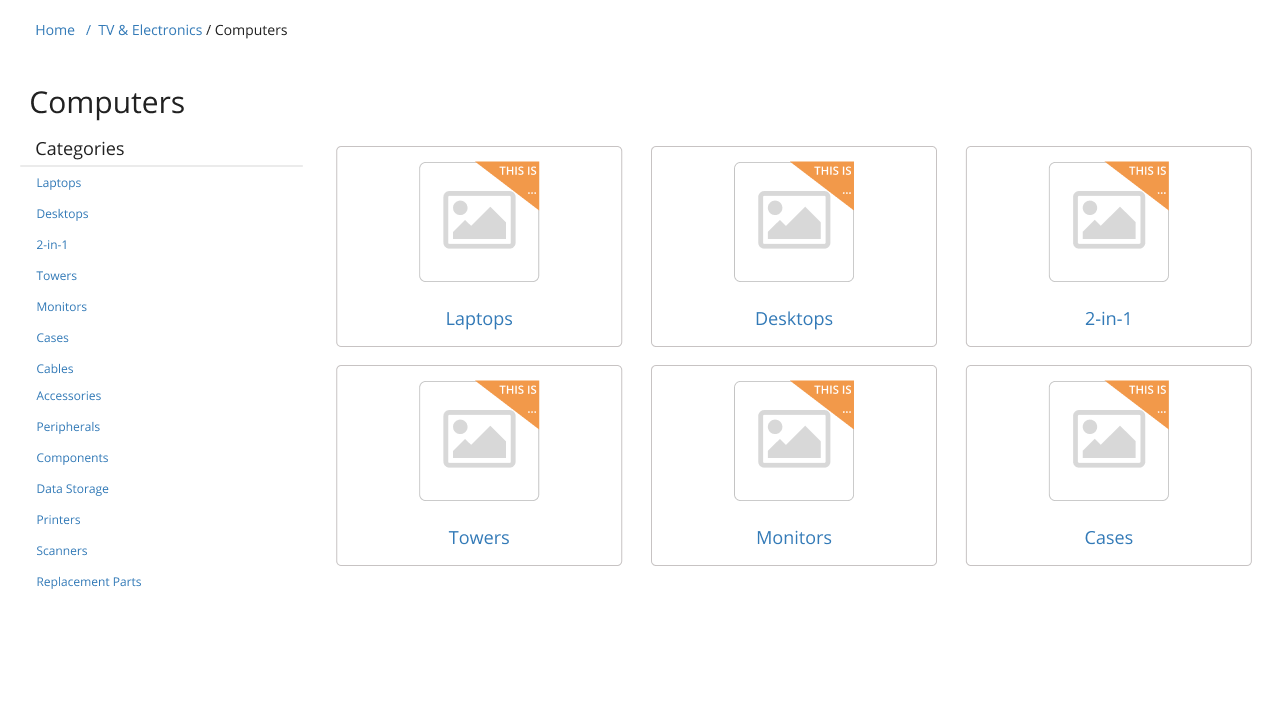

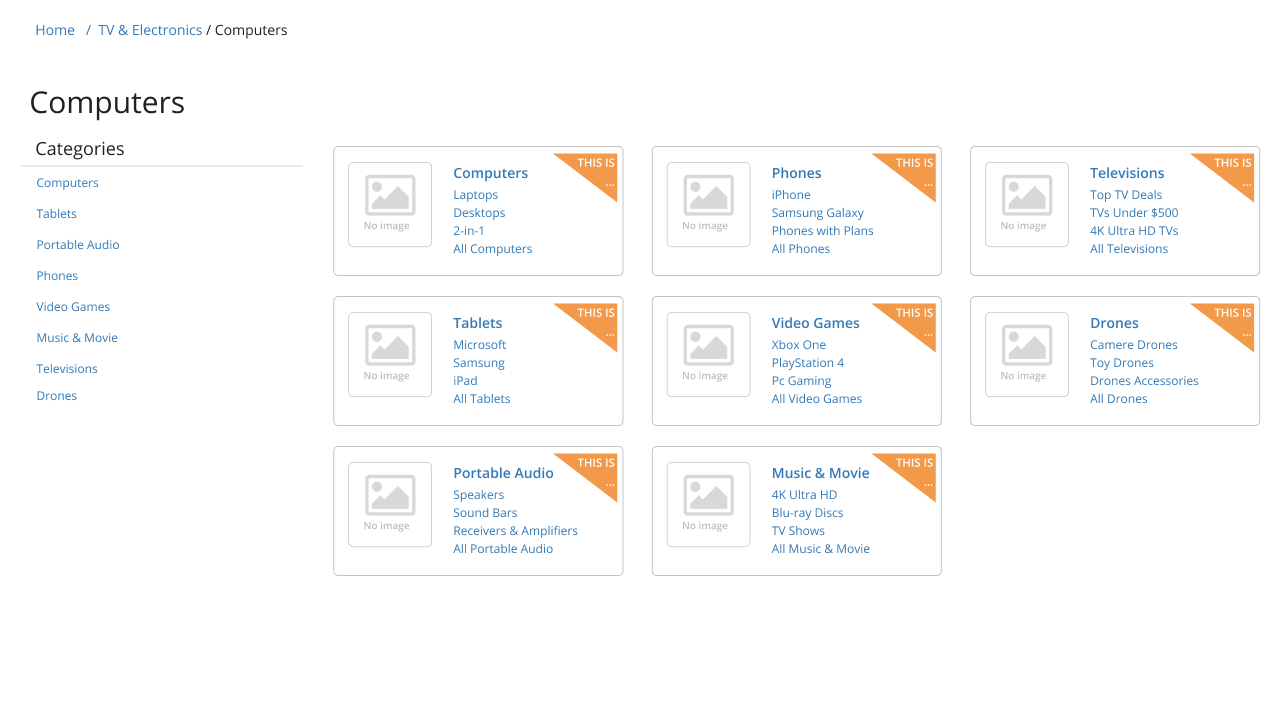

2- Nodes Grid Display
This view is used to render catalog category nodes and any associated badges. An option to switch between grid and list view is available and the navigation breadcrumb is displayed.
Sidebar is hidden and display mode action is aligned to title.

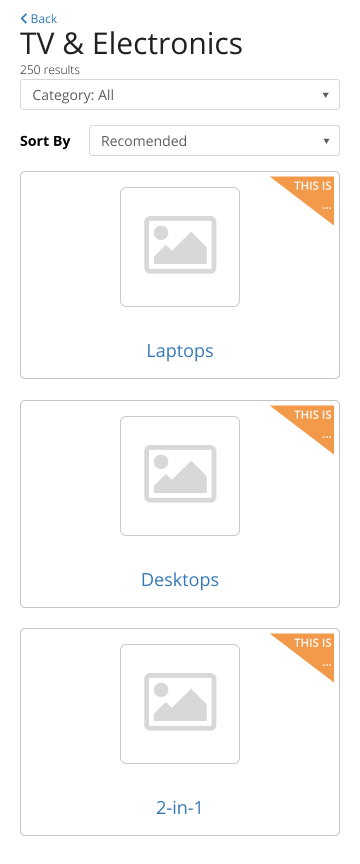

sc-catalog_node-listing-grid-mb
3- Product List Display

The product list can be viewed in list or grid mode and provides the following functionality:

  • Add product to cart
  • Add product to quote
  • Add product to wish list
  • Link to Product Content page
  • Product More Info popup (Find more in “More Information Popup”)
  • View product tag announcements
  • Filter products by attributes
  • Compare products

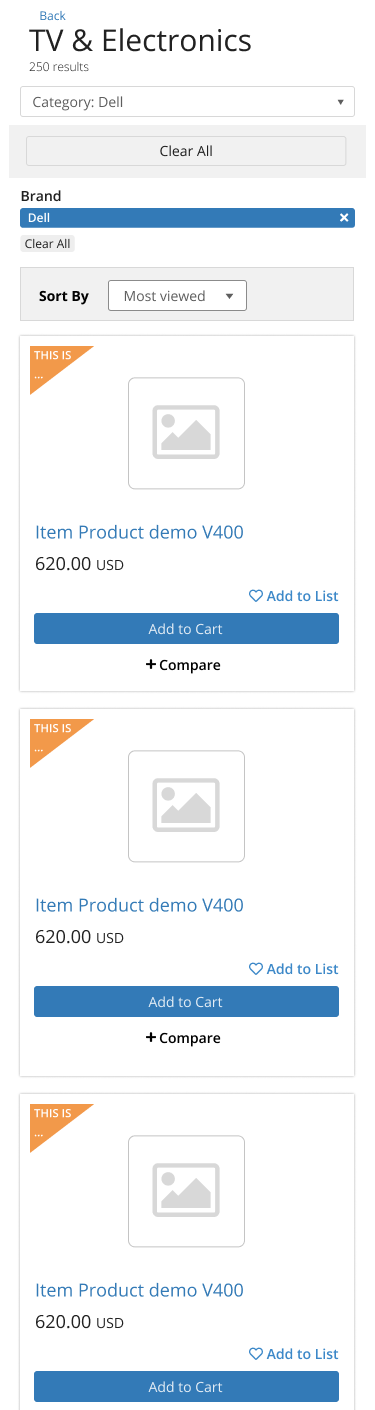

sc-catalog_item-listing-b2c-grid-mb

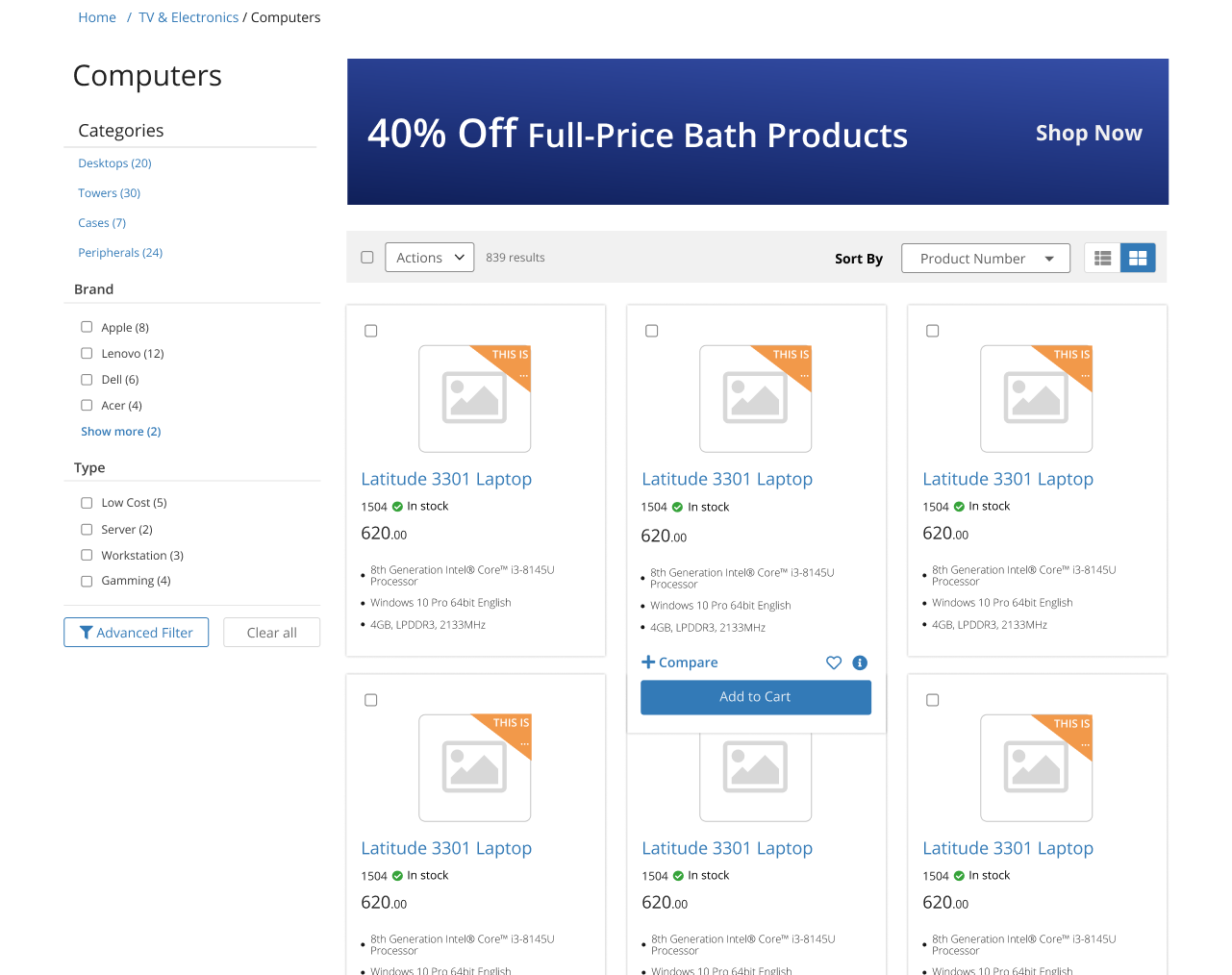

4- Products Grid Display

The product list can be viewed in list or grid mode and provides the following functionality:

  • Add product to cart
  • Add product to quote
  • Add product to wish list
  • Link to Product Content page
  • Product More Info popup (Find more in “More Information Popup”)
  • View product tag announcements
  • Filter products by attributes
  • Compare products

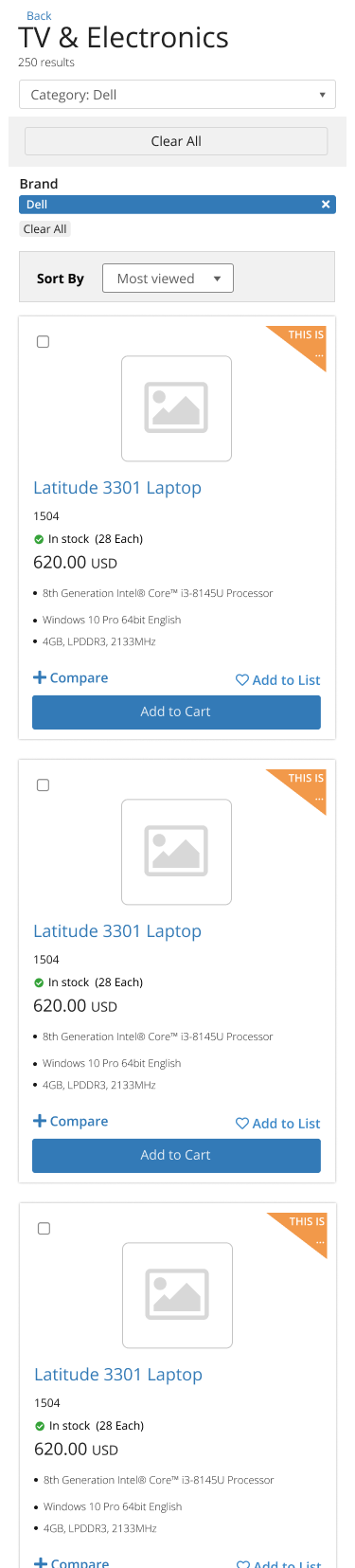

sc-catalog_item-listing-b2b-grid-mb

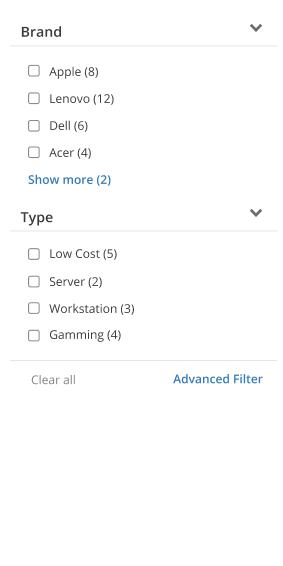

5- Collapsible Sidebar Attributes
Attributes are used to narrow the search scope. Matrix items may be filtered when extended segment information is available. Attributes can be seen in a sidebar or top navigation bar.  Below is an example of sidebar attributes.

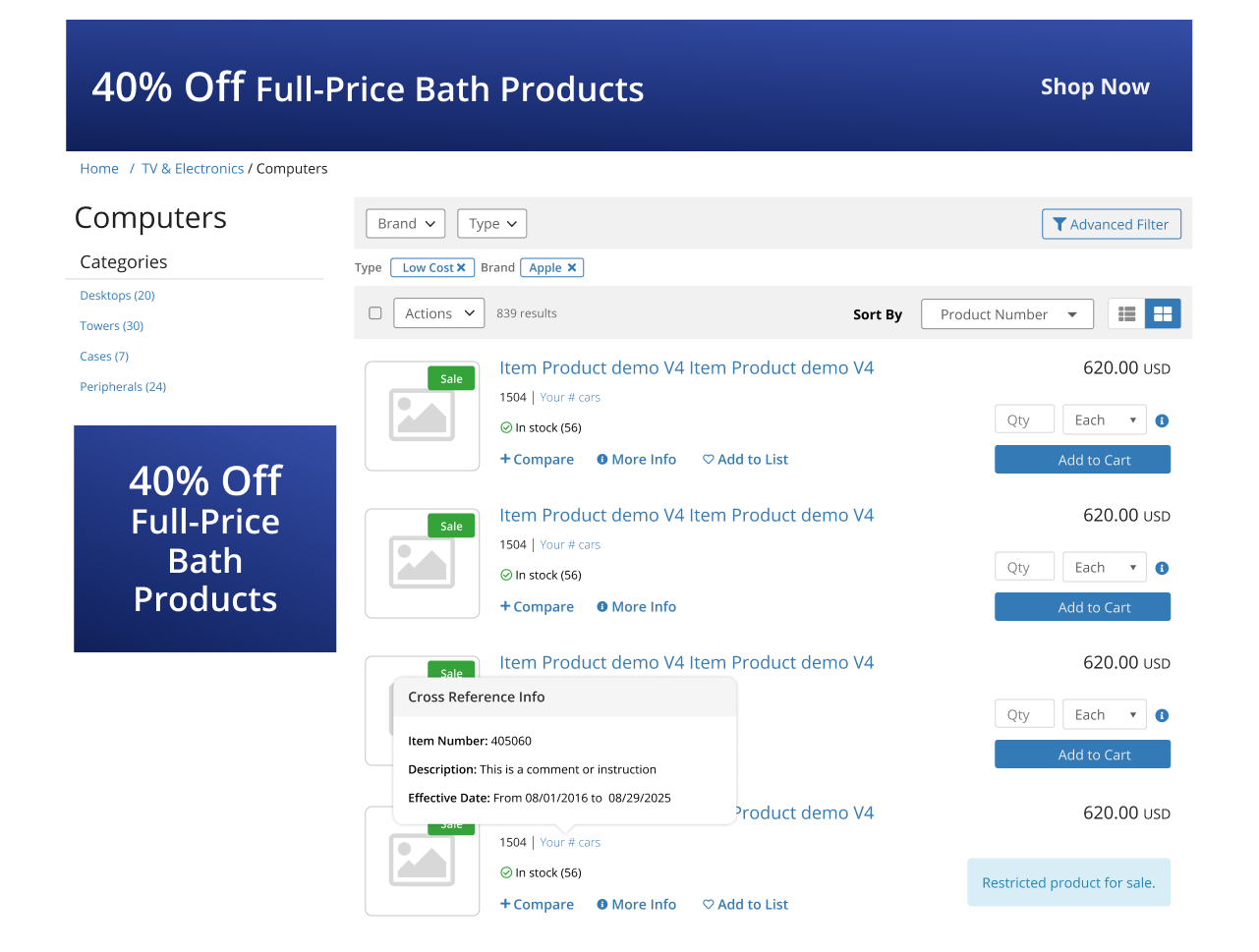

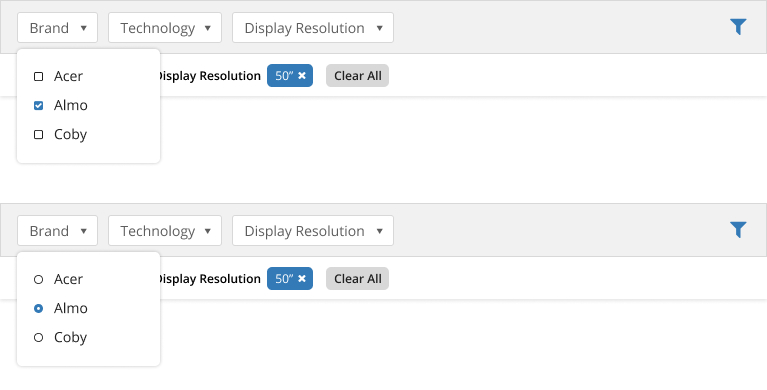

6- Top Attributes Filters
Attributes are used to narrow the search scope.  Attributes can be seen in a sidebar or top navigation bar.  Below is an example of top bar attributes.

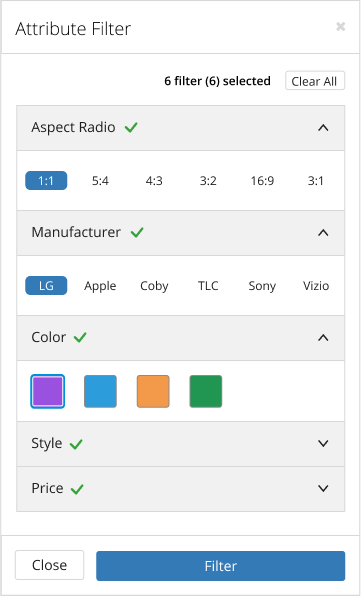

7- Advanced Attributes Modal
Advanced attributes filter allows the user an exhaustive control of all available filters.

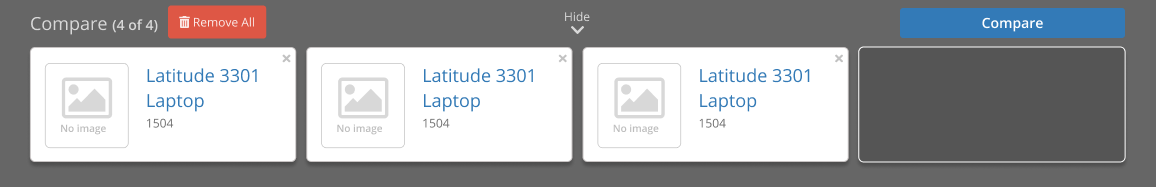

8- Compare Products Bar Opened
The compare products bar allows the user to view and compare products side by side. The example below displays the compare products bar opened. Please note this view is not available for mobile.
9- Compare Products Bar Collapsed
The compare products bar allows the user to view and compare products side by side. The example below displays the compare products bar collapsed. Please note this view is not available for mobile.

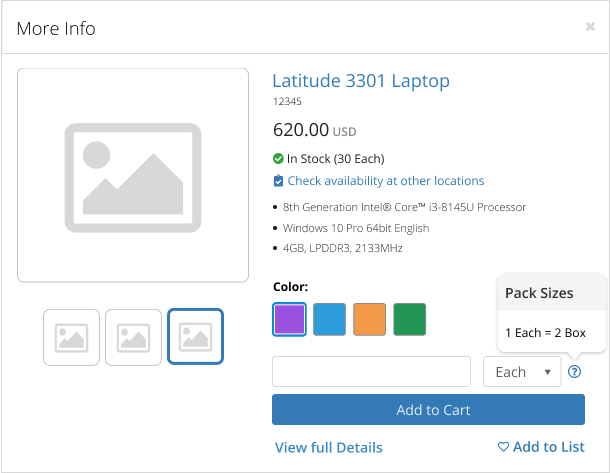

10- More Info Modal
For each product, the user may press a button to display preview information about the product. Validations regarding category code restrictions, stocking type restrictions, and items not available in the default location will not be performed. These validations are performed when add to cart is attempted.
Catalog ID
Optional value that defines the catalog ID to display. If property is not set, the widget will get the catalog ID from the catalog path. If catalog ID is not available in the catalog path, the widget will use the last catalog that the user has visited or the first catalog available. Under this configuration where Catalog ID is retrieved from the URL path, there is a restriction with the page name and page URLs. The page where the Catalog widget is dropped cannot be named as any of the catalogs available. For example, if there is a catalog named Products, the catalog page cannot be named “Products”.
Display Category Nodes in the Sidebar
Display or hide the category nodes in the sidebar. Default value is true.

Max Category Nodes to Display
Defines the number of category nodes to be displayed. Default value will be 5. If the value is 0 all attributes are displayed in front.
Navigation Links
Display or hide navigation links in the sidebar.
Attributes Filter Display Mode
Defines how the attributes filter will be displayed on sidebar or top. Default value is sidebar.
Enable collapse in sidebar

Defines if attributes and category nodes are displayed in a collapsible section. Default value is No.

Max Attributes to display
Defines the number of attributes to be displayed.  Default will be 5.  If the value is 0 the all attributes are displayed.
Max Attribute values to display
Defines the number of attribute values to be displayed.   If Attributes display mode is Sidebar then default will be 5, otherwise empty.  If the value is 0 the all attributes are displayed.
Catalog Category Nodes Layout
Defines the startup mode for the Catalog Category Nodes listing: List or Grid. Default value is Grid.
Display Category Node Images

Displays or hides the category node images

Node Thumbnail Size
Defines the Sitefinity Thumbnail Size for images. Default value is the original size of the image.
Display Subcategories
Display or hide catalog subcategories of each node. Default value is false. If the option is checked, an additional input to enter the how many subcategories is displayed. If the input is left blank, only the first 3 subcategories are displayed.
Display Primary Top bar Content Section
Content is displayed on top bar below the Breadcrumb. Default value is false.
Select Content

Options Content 1, Content 2, Content 3. Default value is Content 1. We have an option for primary, secondary, sidebar, bottom and it is displayed when display option is true.

Use Content From
Catalog or Category Node. Default value is Catalog. We have an option for primary, secondary, sidebar, bottom and it is displayed when display option is true.
Display Secondary Top bar Content Section
Content is displayed on secondary top bar below the Category Title. Default value is false.
Display Sidebar Top bar Content Section
Content is displayed on the sidebar below categories and filters. Default value is false.
Display Bottom Bar Content Section
Content is displayed on the bottom bar. Default value is false.
Product Listing Layout Mode
Defines the startup mode for the Catalog product listing: List or Grid. Default value is Listing.
Allow to Switch Between Grid and List Mode
Display or hides the switch to allow the user to change the initial node listing: List or Grid. Default value is true.
Category Nodes Navigation
Display or hides the carousel of category nodes in the top bar and display an input to configure the quantity of categories visible in the carousel. Default value 4
Display Features HTML on Grid
Display or hide the product features content on grid view.
Display Features HTML on List
Display product the product features content on list view.
Display Price
Show/hide price. Options are: Calculated from ERP, From module, Do not display. Default value is Do not display.
Display Sort by Description
Hide/Show the sort by description. Default value is true.
Sort by Description Position
Used to order sort by options in the dropdown. Default value is 0.
Display Sort by Recommended
Hide/Show the sort by Recommended. Default value is true.
Sort by Recommended Position
Used to order sort by options in the dropdown. Default value is 0.
Display Sort by Product Number
Hide/Show the sort by product number. Default value is true.
Sort by Product Number Position
Used to order sort by options in the dropdown. Default value is 0.
Display Sort by Most Viewed
Hide/Show the sort by most viewed. Default value is true.
Sort by Most Viewed Position
Used to order sort by options in the dropdown. Default value is 0.
Display Add to Cart
Hide/Show add to cart option. This configuration overrides the SmarterCommerce Settings Module values. Default value is true.
Display Add to List
Hide/Show add to list option. This configuration overrides the SmarterCommerce Settings Module values. Default value is true.
Display Image
Hide/Show image. This configuration overrides the SmarterCommerce Settings Module values. Default value is true.
Display Hover Image
Hide/Show hover image. The second image from the product gallery will be used as the hover image. This configuration overrides the SmarterCommerce Settings Module values. Available when Display Image is checked. Default value is false.
Display Availability
Hide/Show availability information. This configuration overrides the SmarterCommerce Settings Module values. Default value is true.
Product Thumbnail Size
Thumbnail size for product image. This configuration overrides the SmarterCommerce Settings Module values. Default value is Original Size. Available when Display Image is checked.
Max Filters to Display
Defines the number of filters to be displayed on the page.  Default will be 5.  If there are more filters than the limit, the Advanced Filter option is displayed. If the value is empty or zero all filters are displayed.
Display Categories in Groups
Display an input to configure the quantity of categories visible in the carousel. Default value 4
Display Availability for Customer / Consumers
Used to display the availability for customer and consumer web users. Values are: Display availability status and quantity available and Display availability status
Availability for Sales Person

Used to display the availability for sales person web users. Possible values are: Display availability status and quantity available and Display availability status. Default value is to Display availability status and quantity available.

Sales Restriction - by Cat Code
Inventory > Settings

Determines the inventory category code values which can be purchased via the web site.

Cross Reference Type for Customer Product Number
Ecommerce > Settings
JD Edwards item cross reference type code representing customer item number.
Notify web user when profile information is changed from website
Ecommerce > Settings
Determines if an email will be sent to the user when web account has changed from the website.
Stocking Type Restriction
Inventory > Settings

Used only in Web Stores - Inventory stocking types which can be purchased via Web Store. Stocking type ‘O’ (Obsolete) can never be purchased.  However, ‘U’ (Use Up-Obsolete) can be purchased via the web site up to the quantity you have remaining.  Possible values are:

All inventory stocking types can be added to cart

Limited Only the selected inventory stocking types may be added to cart

SmarterCommerce Catalog product Restriction
Inventory > Settings
When enabled a product must exist in at least one published catalog to be able to add to cart.



Synchronize Pricing UOM with Transaction UOM
Sales > Settings

Standard JDE uses the pricing UOM to display the unit price and the transaction UOM to display the extended price. This setting allows you to decide if you want to synchronize the pricing UOM with the transaction UOM.  For example on the item master you might have an item setup with EA as the transaction UOM, but CA as the pricing UOM.  When this option is turned on the pricing UOM for the order will be updated and synchronized with the transaction UOM selected.  If the UOM is not synchronized Product Content will display the price with the pricing UOM displayed next to it. If the user changes the UOM then the price will be recalculated. In addition, checkout, place quote, and modify order processes (and the associated email confirmations) will also display the pricing UOM next to the price.

Yes - Synchronize the pricing and transaction UOM

No -  Do not synchronize the pricing and transaction UOM

Display product number
Inventory
For CMS stores this is the product number that will be displayed upon entry and validation of a product. For Electronic Invoice Presentment and Payment (EIPP) stores this is the product number shown in order and invoice history. This is also the product number that will be used throughout the Management Console.
Default page size - On List
Web Site > Paging Configuration
The default page size when viewing products in list mode.
Number of products per page - On List
Web Site > Paging Configuration
Define the numbers of products the to display per page in List Mode.
Default page size - On Grid
Web Site > Paging Configuration
The default page size when viewing products in grid mode.
Number of products per page - On Grid
Web Site > Paging Configuration
Define the numbers of products the to display per page in Grid Mode.
Paging display mode
Web Site > Paging Configuration
The options are:
  • Enable user to change the number of records per page
  • Show fixed records per page
  • No paging
Action after add to cart
Web Site > General Behavior
Determines behavior upon adding items to the cart. The options are:
  • Redirect to Shopping Cart
  • Stay on the same page
  • Display added to cart confirmation modal
Attribute value thumbnail size
Web Site > General Behavior
When an attribute is set with display mode as image or color this is the thumbnail size that will be used.
Product listing small thumbnail size
Web Site > General Behavior
This size will be used in carousels, in the Tabular display mode, compare bar, and in floating popups. If required, select a smaller size than the Product listing thumbnail size. SmarterCommerceCarousel 80X80 recommended. Please note if you image(s) are smaller than the recommended size you may see excess white space.  For more information on creating new thumbnail sizes please click  here.
Display product images
Web Site > General Behavior

You can decide to show/hide product images on your website. When the setting is setup to show images, you must configure the Product Thumbnail Sizes.

This setting affects all widgets except Catalog and Search Results. These widgets have a property in the designer to allow user to configure to Show/ Hide images and to select the image thumbnail size.

Guest Users - Display Price Information
Web Site > Guest Users
Determines if pricing information will be available for guest (unauthenticated) users.
Enable preferences cookies
Web Site > Cookies
Enable preferences cookies (used to save web user preferences like page size, sort by, search mode, delimiter, and layout mode).
Enable profile cookies
Web Site > Cookies
Enable profile cookies (used for Remember Me functionality and to save language preference).
Unit of measure display mode
Inventory

Unit of measure display mode. The options are:

  • Do not display UOM
  • Show UOM as a display only field
  • Enable UOM selection by the user
Please note that when this setting allows the user to selection a new UOM the list of UOM available to the customer is dependent on the F41003 (primary and transaction UOM as well as all UOM that can be converted to those) or the F41002 (all UOM for the item).  In all cases the UOM must be configured for the Store to appear in the Ecommerce selection list.
Badge announcement style
Catalog > Badge Announcements
A badge is a small piece of information displayed for the user. The available badge styles are circle, triangle, rectangle, and tail.
Maximum announcements to display
Catalog > Badge Announcements
The maximum badge announcements to display in products and nodes.
Products layout mode
Catalog > Product Listings

Defines the product list default layout. Options are Grid and List. This setting affects:

  • Most Viewed Items Full List View
  • Product Content Replacements View
  • Recently Viewed Items Full List View
  • Wish List

Allow compare products
Catalog > Product Listings

Compare functionality allows you to view up to four products together for easy comparison. This setting defines if the option to compare products is displayed or not. Available in:

  • Most Viewed Items Full List View
  • Catalog
  • Product Content
  • Recently Viewed Items Full List View
  • Product Search Results
  • Wish List
  • Product Content  Replacements View
Display price break (more info)
Catalog > Product Listings

Defines if price break information is displayed in the More Info pop-up or not. Display price break is dependent on setting within SmarterCommerce Management Console (refer to Display Price Break and Required Quantity for Volume Discounts setting).  Available in:

  • Most Viewed Items Full List View
  • Catalog
  • Product Content
  • Recently Viewed Items Full List View
  • Product Search Results
  • Wish List
  • Product Content  Replacements View
Display savings (more info)
Catalog > Product Listings

Defines if savings are displayed in the More Info pop-up. Display savings is dependent on setting within SmarterCommerce Management Console (refer to Display Base Price and Savings setting).  Available in:

  • Most Viewed Items Full List View
  • Catalog
  • Product Content
  • Recently Viewed Items Full List View
  • Product Search Results
  • Wish List
  • Product Content  Replacements View
Display more info
Catalog > Product Listings

Determines if More Info pop-up is displayed or not. Does not apply to the Most Viewed Thumbnail view, Recently Viewed Thumbnail view, Compare and Quick Order Widgets. More Info is available from:

  • Catalog
  • Product Content Replacements View
  • Recently Viewed Products
  • Most Viewed Products
  • Wish List
  • Product Search Results



Display massive actions
Catalog > Product Listings

Determines if massive actions (such as add to cart or add to wish-list) are displayed or not. Available in:

  • Catalog
  • Most Viewed Products Full List View
  • Product Content Replacements View
  • Product Search Results
  • Recently Viewed Products Full List View
  • Wish List
Show product number
Catalog > Product Listings

This setting hides/shows the product number and the customer cross-reference number. This setting is used in the product search visual assistant and the following widgets:

  • Catalog
  • Compare (widget and bar)
  • Cross reference products in Product Content and Shopping Cart
  • Most Viewed Products
  • Product Content Replacements View
  • Product Search Box (suggestions)
  • Product Search Results
  • Recently Viewed Products
  • Wish List
  • Add to Cart Modal Confirmation

    The historical widgets, for example Order History, Invoice History, and Product Content and the “More Info” modal do not use this setting.


Filter by assignments Attribute
Catalog > Product Filter Assignments
Catalog products can be filtered to show only those assigned to the customer. This is the attribute that is used to assign products to the customer.
Address Book Category Code
Catalog > Product Filter Assignments
Defines the customer category code (1-30) used to filter products in the catalog.
Elastic endpoint URL
Catalog > Elasticsearch

URL used in the authentication of credentials for connection to the Elastic Client. This is a global setting that applies to all sites.



Elasticsearch Username
Catalog > Elasticsearch

Username used in the authentication of credentials for connection to the Elastic Client. This is a global setting that applies to all sites.

Elasticsearch Password
Catalog > Elasticsearch

Password used in the authentication of credentials for connection to the Elastic Client. This is a global setting that applies to all sites.

Elasticsearch Index name
Catalog > Elasticsearch

Index Name used in the authentication of credentials for connection to the Elastic Client.

Catalog provider
Catalog

Defines the website catalog provider. The options are:

  • Internal with App Search
  • Internal with Elasticsearch
  • External
Number of days the most viewed products are based on
Catalog
Defines the number of days to use/show in Most Viewed Products.  If this setting is changed, the change will be reflected the day after the change.
Display price mode
Catalog > Product Listings
Defines if the product price is displayed or not. Options are:
  • Price calculated from ERP
  • Do not display price in listings
  • Price is displayed from the Products module

This setting affects the following widgets:

  • Compare
  • Most Viewed Products Full List View and Thumbnail View
  • Product Content Replacements View
  • Quick Order
  • Recently Viewed Products Full List View and Thumbnail View
  • Wish List
Allow check for replacements
Inventory
Replacement items are offered when you attempt to add an obsolete item to the cart.  This setting determines if checking for replacement items is allowed.
By default configure products to allow decimals in quantity field
Inventory
This setting will be used when adding new Products to the module.
Please note: User can turn this functionality on only when the JDE data dictionary QTYINV is configured with “Display Decimal” > 0. Please review Oracle documentation regarding decimal places/updates to implement this functionality.
Display product images in tabular mode
Web Site > General Behavior
Determines if product images will be displayed in tabular mode.
Number of matrix variations in grid mode
Web Site > General Behavior
Use this setting to limit the number of visible options of the segment that was selected as the matrix product variant, for example color. Leave empty or zero to display all variation values.
Number of matrix variations in list mode
Web Site > General Behavior
Use this setting to limit the number of visible options of the segment that was selected as the matrix product variant, for example color. Leave empty or zero to display all variation values.
Google Analytics version
Web Site > Google Analytics

.Google Analytics version in use. Choose from:

  • Google Analytics 4 (GA4)
  • Universal Analytics (UA)
  • Universal Analytics (UA) and Google Analytics 4 (GA4)
Allow user to change the products layout mode
Catalog > Product Listings
Products may be displayed in list or grid mode. This setting defines if the web user is allowed to change the products layout mode.
Display add to cart
Catalog > Product Listings

Determines if the add to cart option is displayed or not.  This setting affects the following widgets:

  • Most Viewed Products Full List View
  • Product Content Replacements View
  • Wish List
  • Recently Viewed Products Full List View
  • Compare
Display add to list
Catalog > Product Listings

Determines if the option to add products to wish-list is displayed or not. This setting impacts the following widgets:

  • Compare
  • Most Viewed Products Full List View
  • Product Content Full View
  • Product Content Replacements View
  • Product Content Availability View
  • Recently Viewed Products Full List View
  • Shopping Cart Full View
  • More Info Modal*

*Depends on widgets configuration

Guest Users - Display add to cart
Web Site > Guest Users
Determines if add to cart will be available for guest (unauthenticated) users.
Check Availability Mode For Sales Person
Catalog > Product Listings

Defines the check availability mode for Sales Person. The options are:

  • Do not display availability
  • Display availability status and quantity available
  • Display availability status

Quantity available display is dependent on P4210 processing option 'Activate Availability Checking' if the value is Blank (Bypass availability checking), then quantity available will not be displayed on the website.

Check Availability Mode For Customer/Consumer
Catalog > Product Listings

Defines the check availability mode for Customer/Consumer. The options are:

  • Do not display availability
  • Display availability status and quantity available
  • Display availability status

Quantity available display is dependent on P4210 processing option 'Activate Availability Checking' if the value is Blank (Bypass availability checking), then quantity available will not be displayed on the website.

Web Store ID
Web Site

Designates the Management Console Web Store Id.

If the value of the setting is modified and there is already data in App Search, the engine must be deleted and rebuild of Catalogs and Products must be executed.

Refresh Application Context
Web Site
Refresh Catalog Information, Product and Catalog Images, CMS and MC settings. This action is similar to clearing cache.
Import Data Block Size
Import/Export
This setting is used in the Import Content process and represent the block size to be processed at the same time. Sitefinity recommends a maximum value of 300.
Products Default UOM
Unit of Measure
Determines the specific units of measure available for products.
Display hover image
Web Site > General Behavior
When the setting is on, the second image from the product gallery will be used as hover image.
View Pricing Information
Determines if the web user is allowed to see pricing and price break information. If the web user does not have permission they can still browse your catalog, but they won't see pricing.
Licenses
  • Premier.Catalog

Bring It All Together

We bring together digital commerce, retail and call center channels with a united approach that leverages the power of onmi-channel while prioritizing JD Edwards connectivity.

CONNECT WITH AN EXPERT
